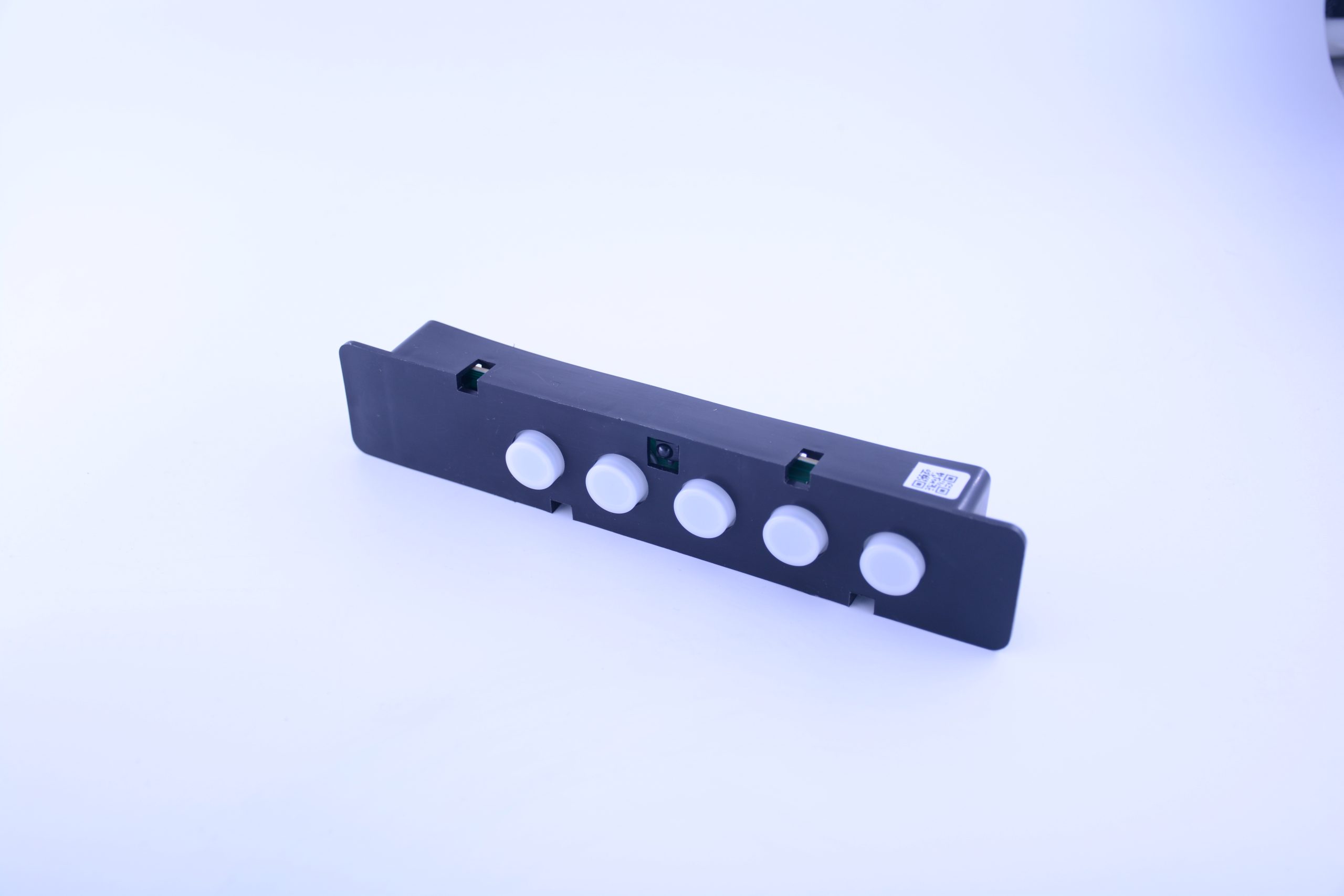

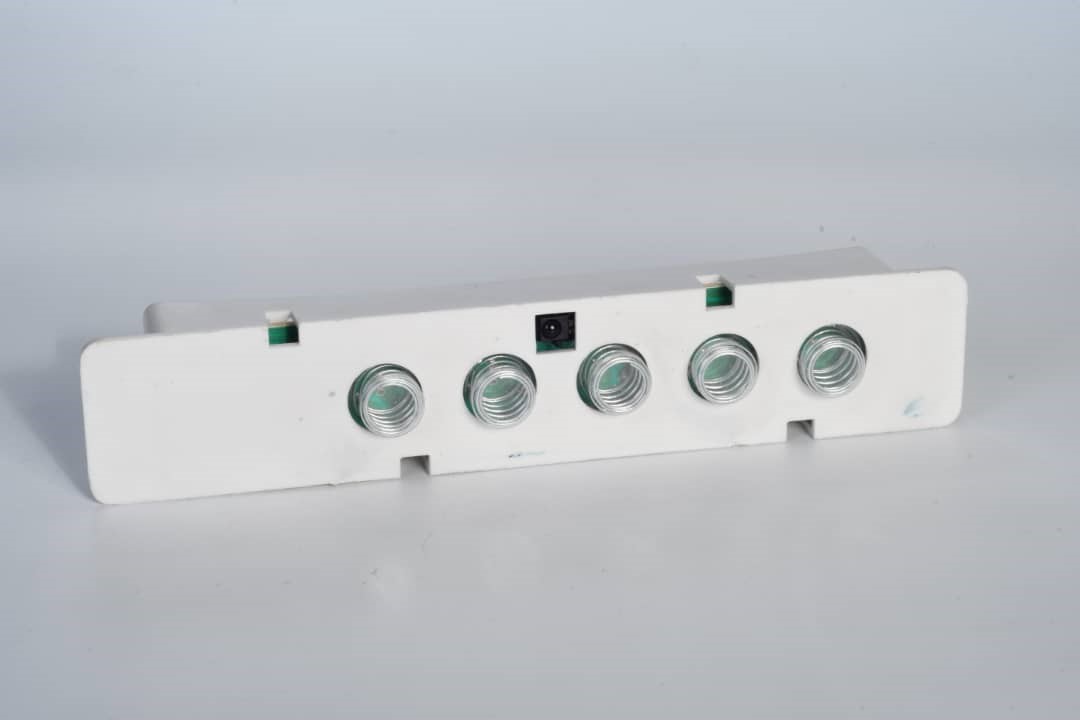

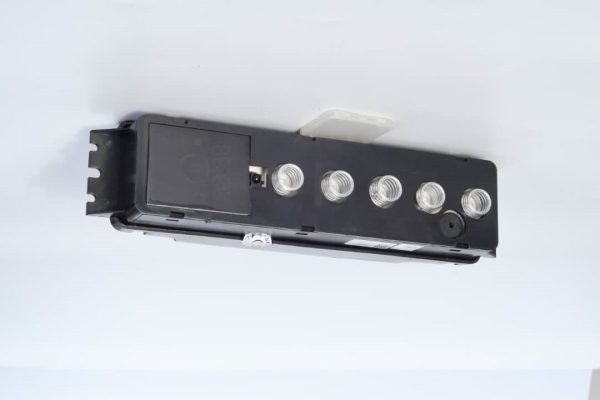

Hood touch key model BTK13
This product display and controls the function of the kitchen hood
the control in this key is touch.
horizontally or vertically installation available for this product

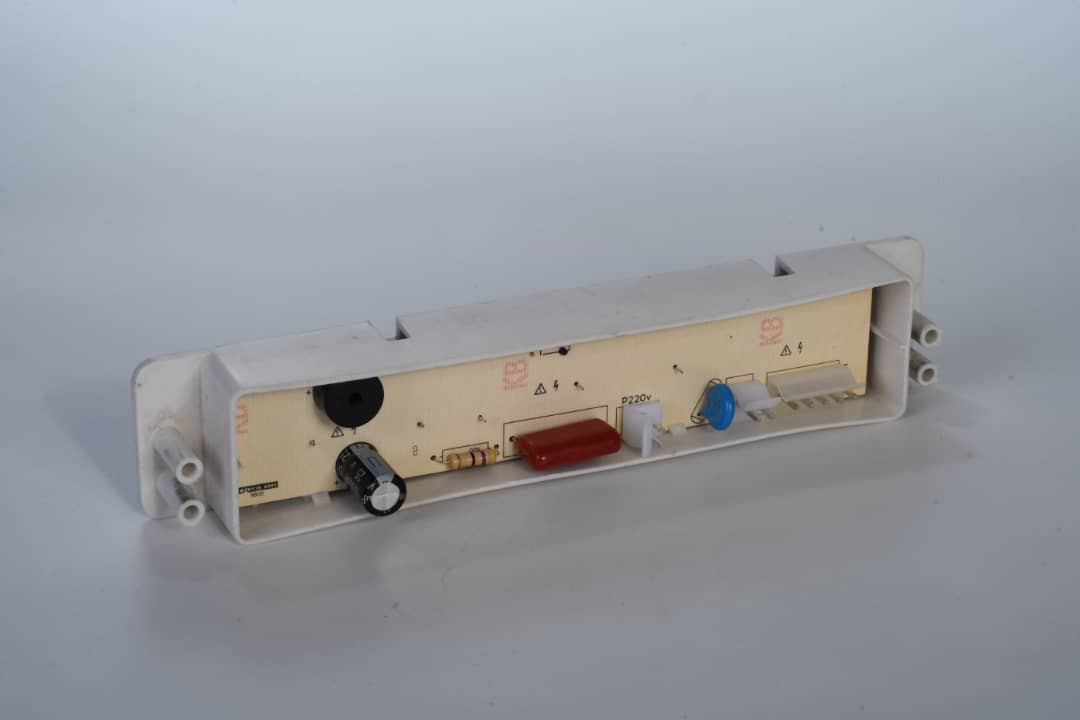

The power supply board of this switch is in a box with a touch switch
This switch has two 220V outputs for lamps. Each of them can flow up to 0.4 amps.
The BTK12K key has an infrared receiver

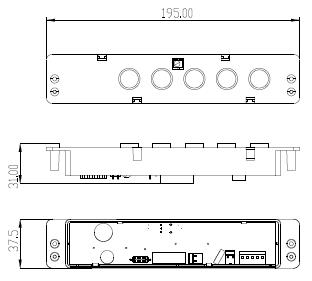

| Dimensions | 195 × 37 × 31 mm |
|---|---|
| Input Working Voltage | 180~265vAC, 50(60)Hz |
| Power Supply Type | Capacitive |
| Lamp Output Voltage | 220v AC |
| Lamp Max Current | 2 Amp |
| Lamp Output Max Number | 1 |
| Fan Speed Max Number | 4 |
| Fan Motor Max Current | 2 Amps |
| Fan Speed Control Mode | Zero Crossing Mode |
| Capacitive Touch Key Number | 5 with Backlight |
| Touch Key Operations | Lamp, FAN1, FAN2, FAN3, FAN4, Timer, Backlight, Reset |
| Remote Control Type | Infra-red |
| Timer | 8 Hrs |
| Working Temperature Range | -20~85 ˚C |
| Color | Black |
| Enclosure Material | Fire Retardant ABS(PP) |
