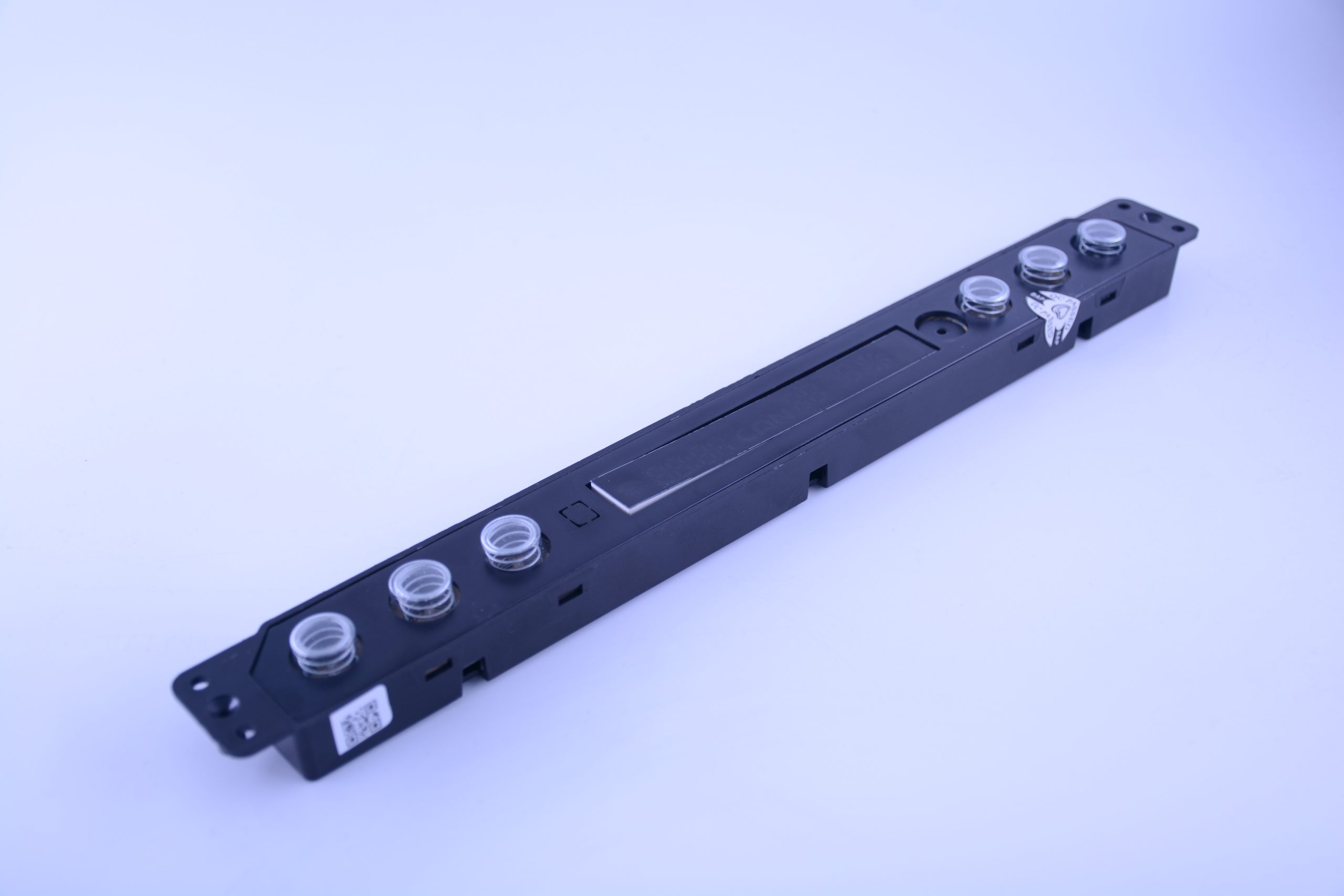

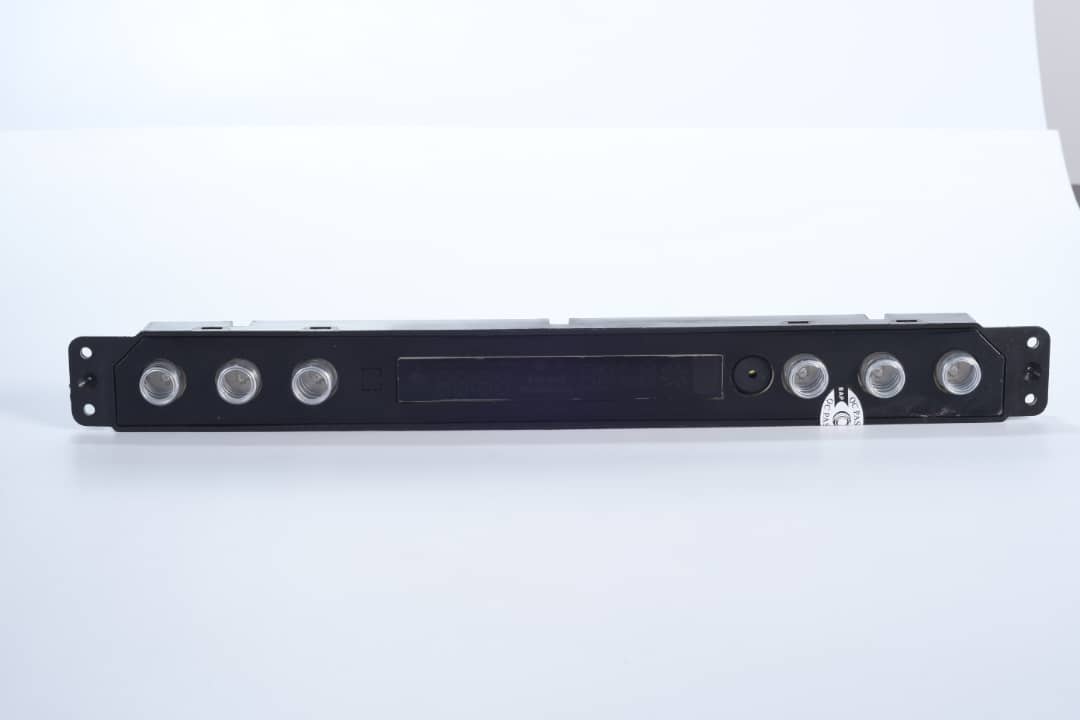

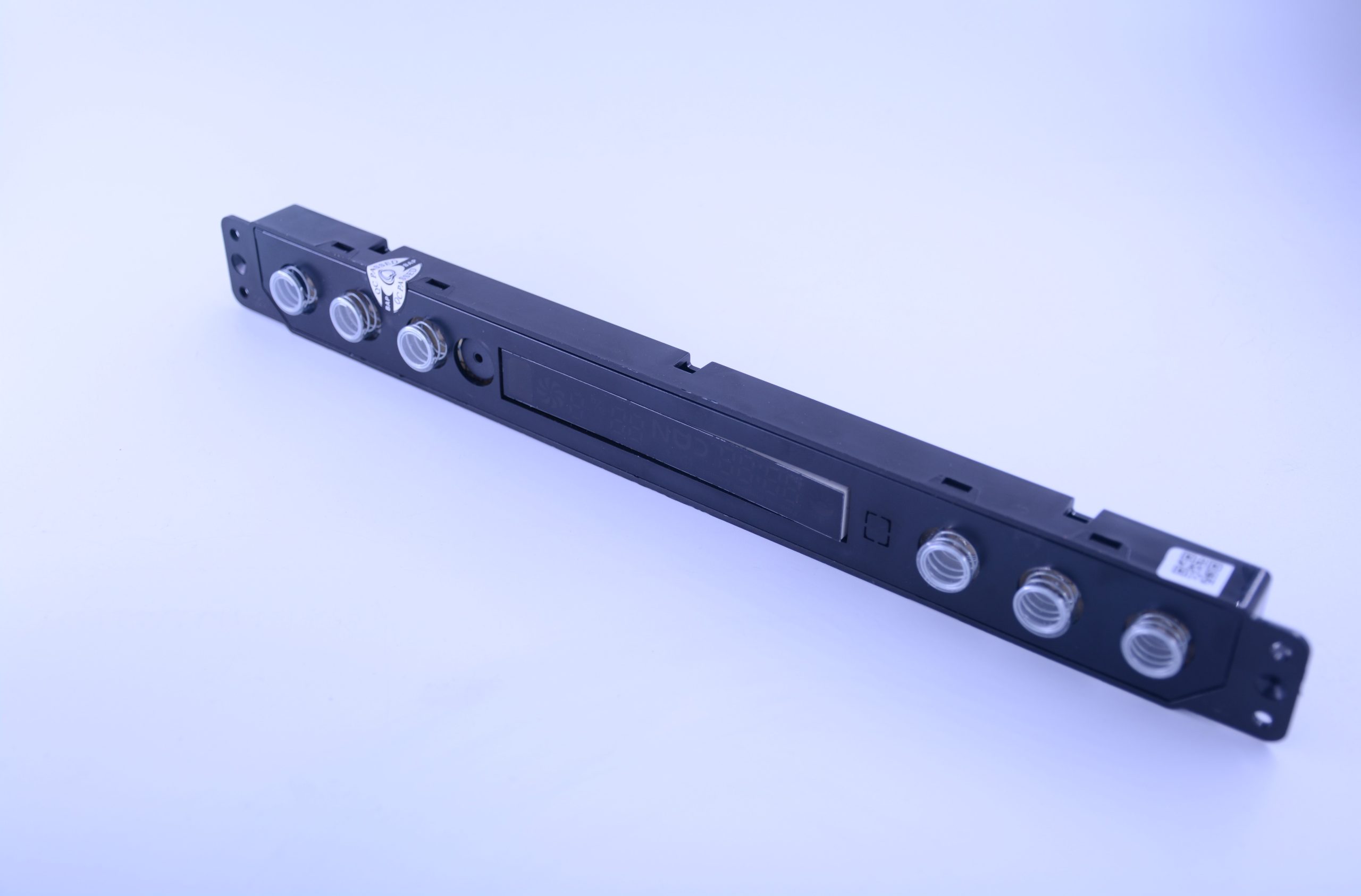

Hood touch key model BTk08
This product shows and controls functionality of kitchen hood
the control in this key is touch
its display has the ability to display motor speed, temperature, current time and timer.
This key has an infrared receiver and an internal temperature sensor
it has the ability to install an external temperature and gas sensor.
The BTK08 board communicate with the BMC01 board by a 10-wire flat cable
| Input Working Voltage | 3.3~5vDC |
|---|---|
| Communication with Driver Board | 4-Wire (XH5P), Serial |
| Lamp(LED) Output ON/OFF Mode | PWM with Fade |
| Ext. Sensor | 4-wire (XH), MQ5 and NTC Sensor |
| Capacitive Touch Key Number | 6 with Backlight |
| Touch Key Operations | Power, Lamp, UP, Down, Timer, Auto, Backlight, Reset |
| Display Type | LED Display with LOGO and IR-Sensor |
| Remote Control type | Infra-Red |
| Fan Speed Max Number | 4 |
| Automatic Mode | Yes, if Ext. Sensor has connected |
| Timer Max Time | 8Hrs |
| Internal Sensor | NTC (0~99 ˚C) |
| Power Board Type | BMC01 |
| Working Temperature Range | -20~85 ˚C |
| Enclosure Material and Color | Fire Retardant ABS(PP)- Black |
