BTK07

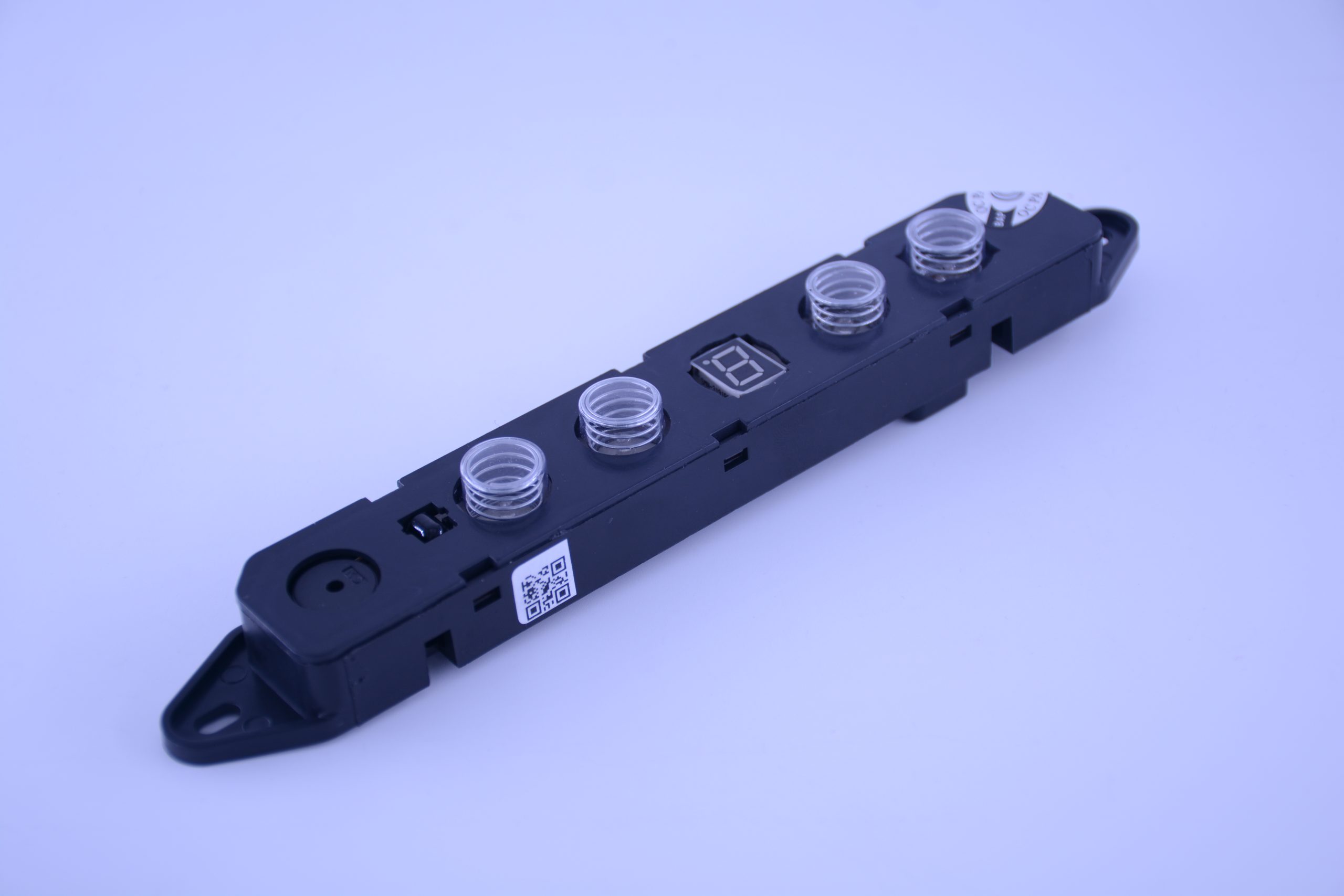

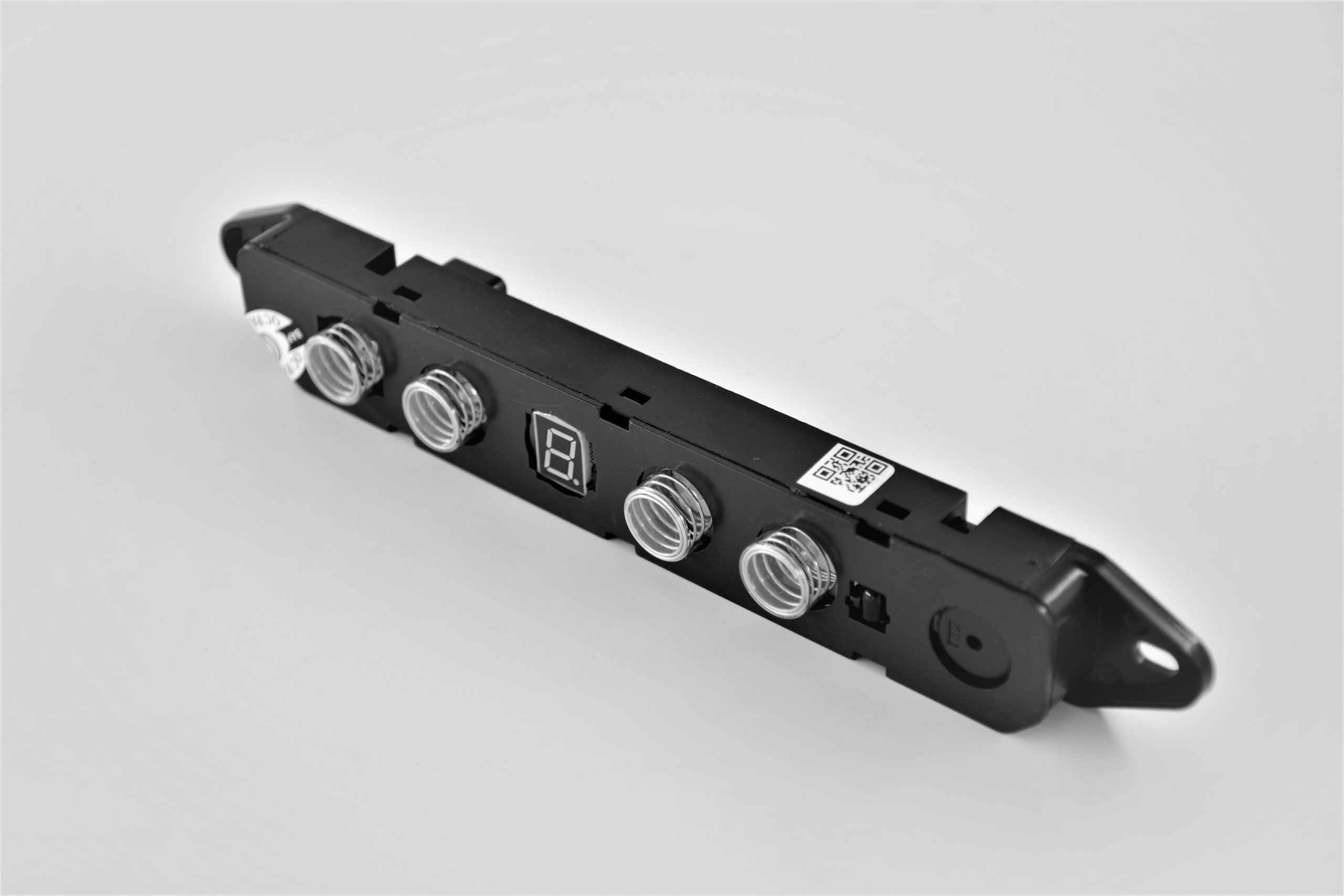

Hood touch key model BTK07

Category: Hood

Description

This product show and controls functionality of kitchen hood

the control in this key is touch and its installation is vertical.

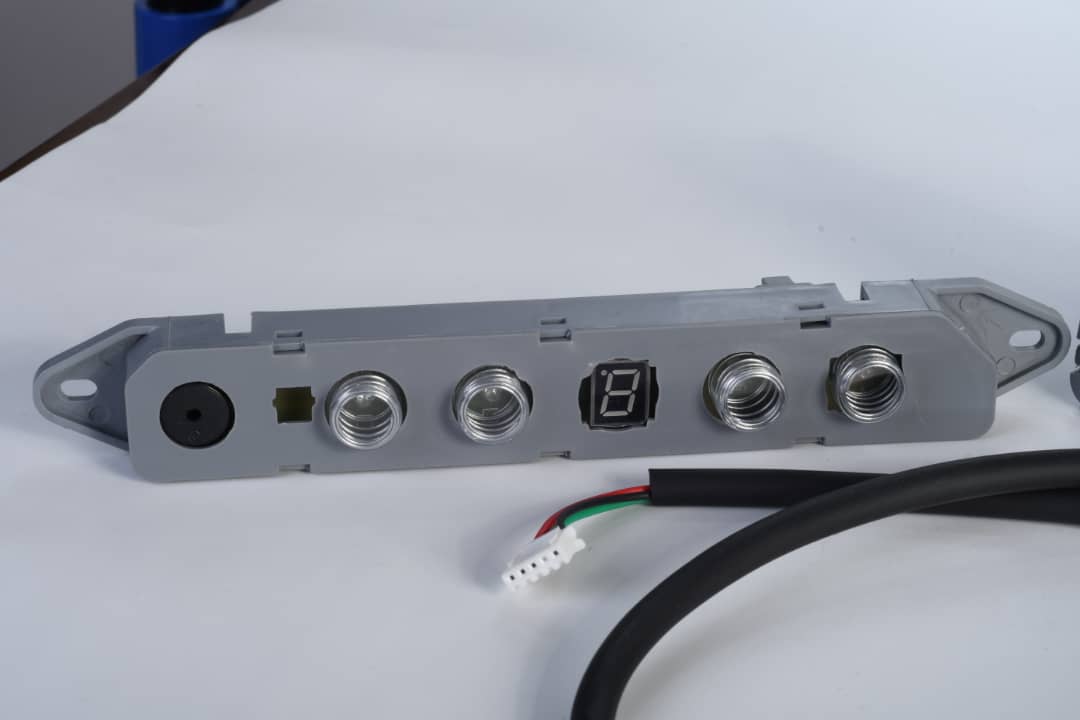

The display of this key is a seven-segment

motor speed display with a number, the lamp with a dot, and the automatic mode with the letter A.

The BTK07 key has an infrared receiver and an internal temperature sensor

it has the ability to install an external temperature and gas sensor

This key is also customizable with an RF radio receiver

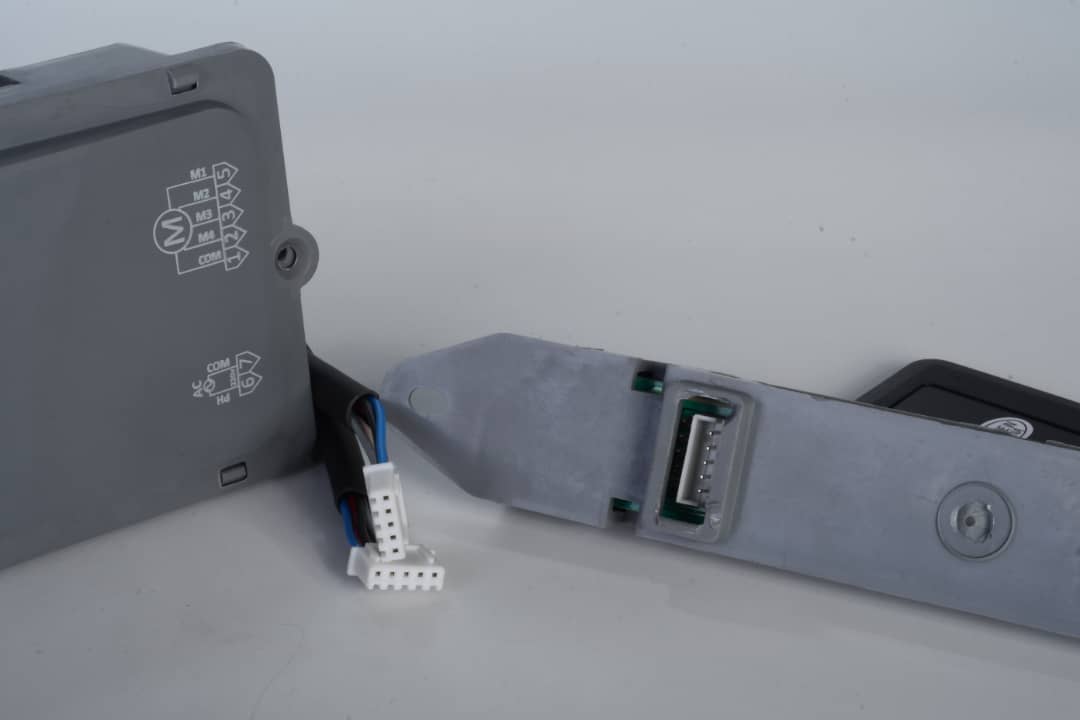

The BTK07 key communicate with the BMC01 command circuit by a 4-wire serial cable or a 10-wire flat cable.

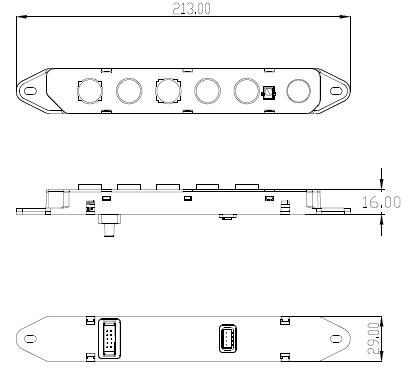

Dimensions	213 × 29 × 16 mm
Input Working Voltage	3.3~5vDC
Communication With Drive Board	10-Wire (IDC 2×5), Parallel
Lamp Output Mode	PWM with fade
Ext. Sensor	4-wire(XH), MQ5 and NTC Sensor
Display Type	One 7segment LED Display

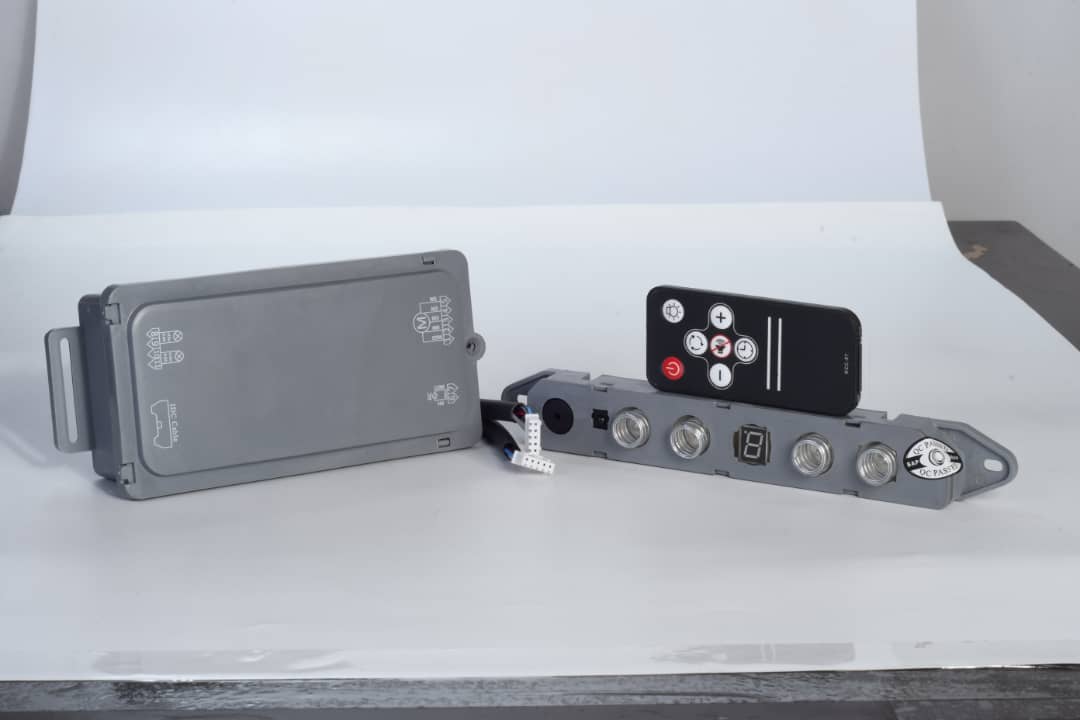

Remote Control Type	Infra-red
Fan Speed Max Number	4
Automatic Mode	Yes
Timer	8 Hrs
Working Temperature Range	-20~85 ˚C
Color	Black
Enclosure Material	Fire Retardant ABS(PP)
