BTK06

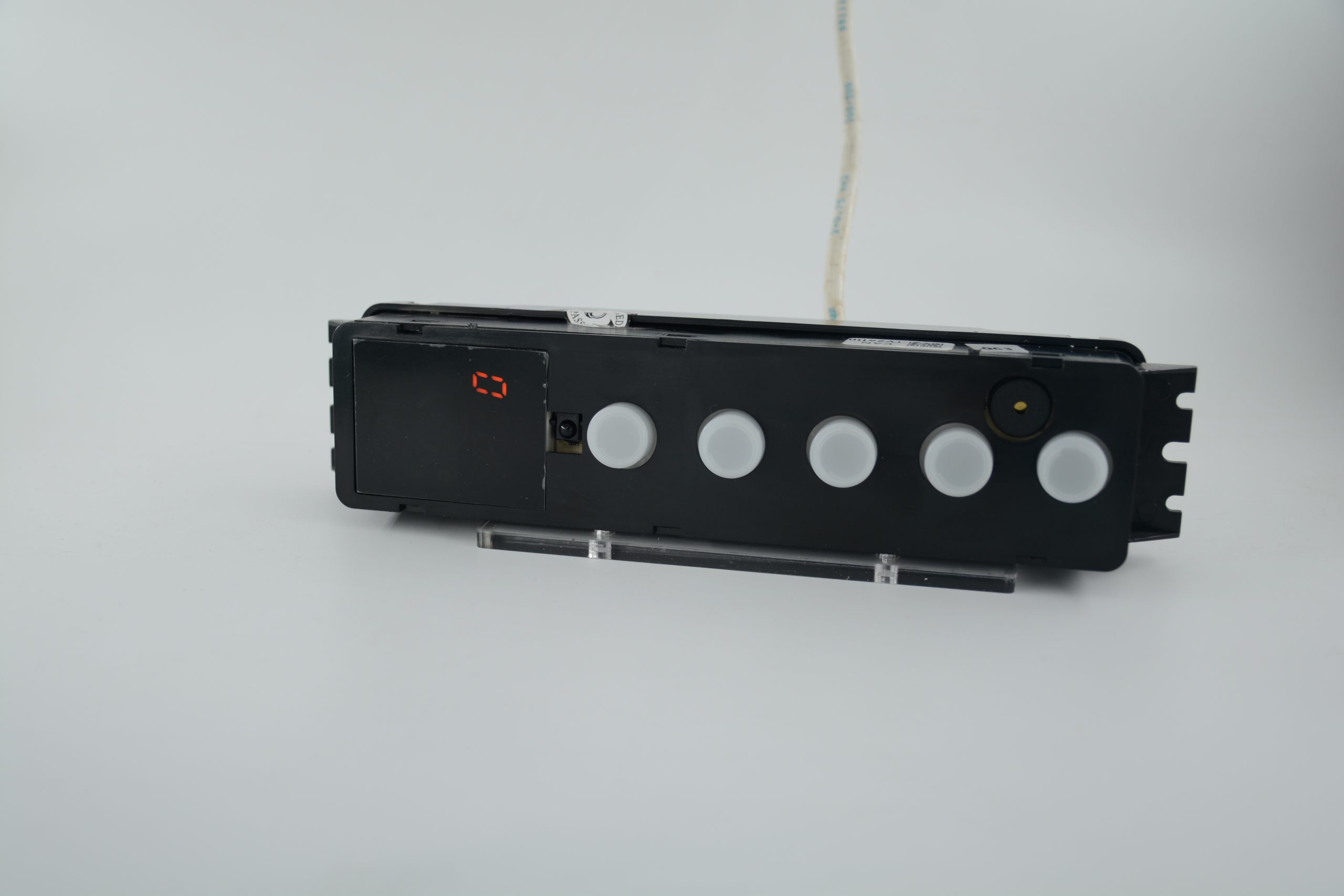

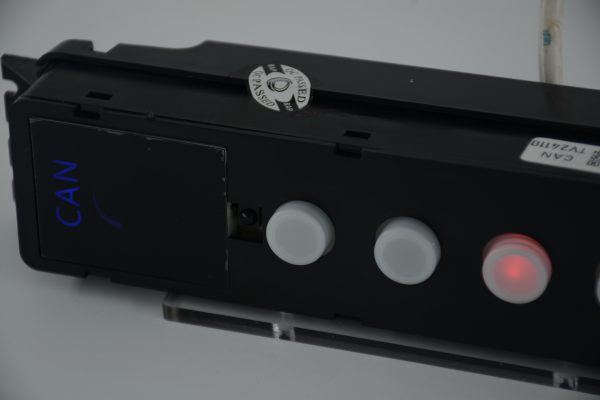

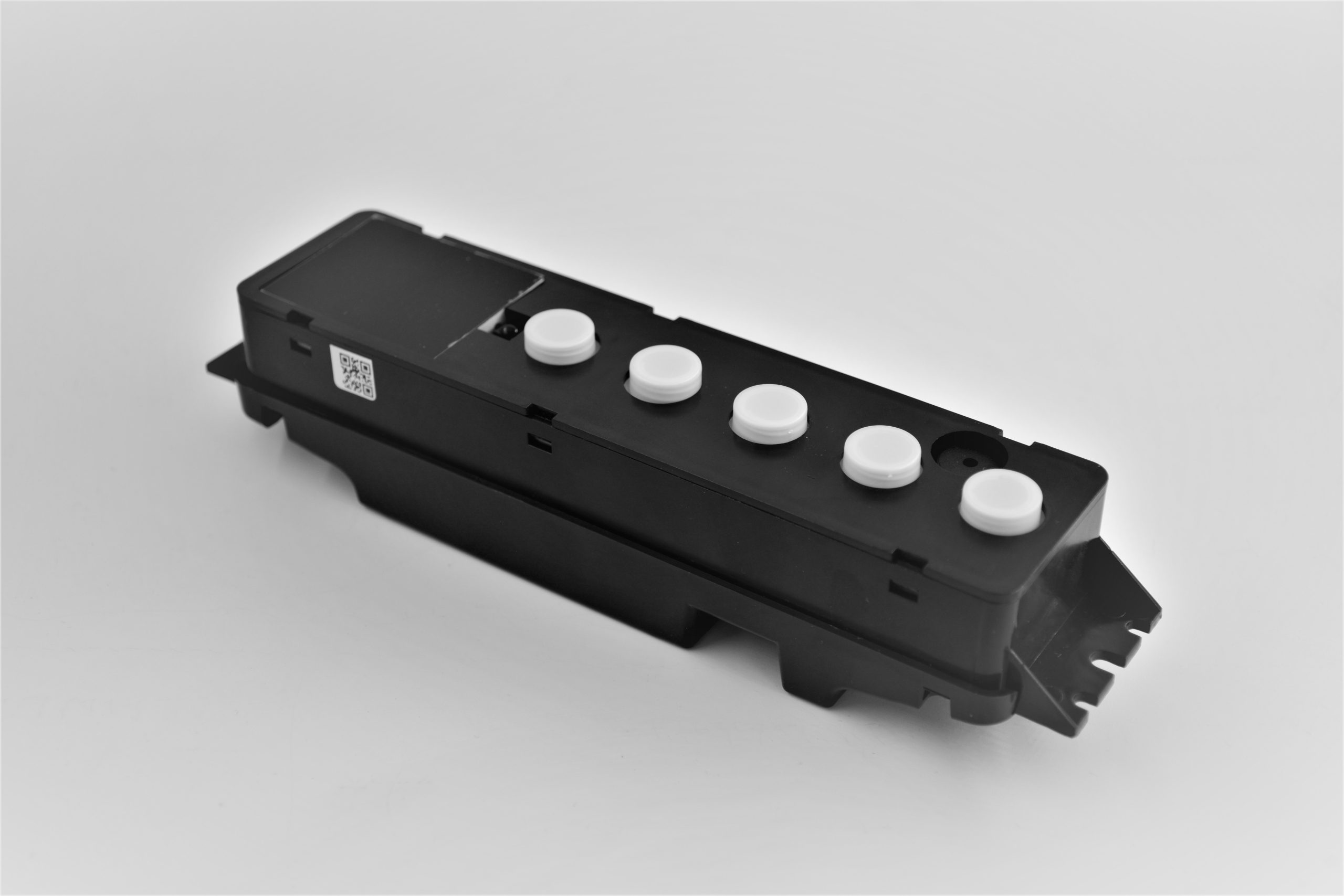

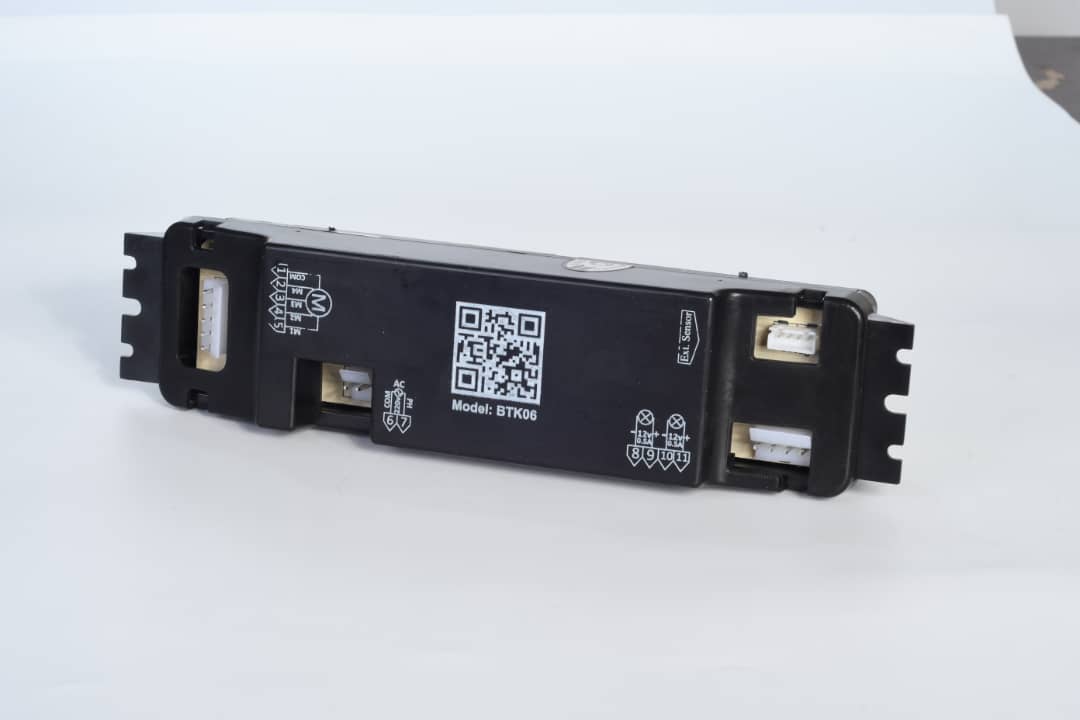

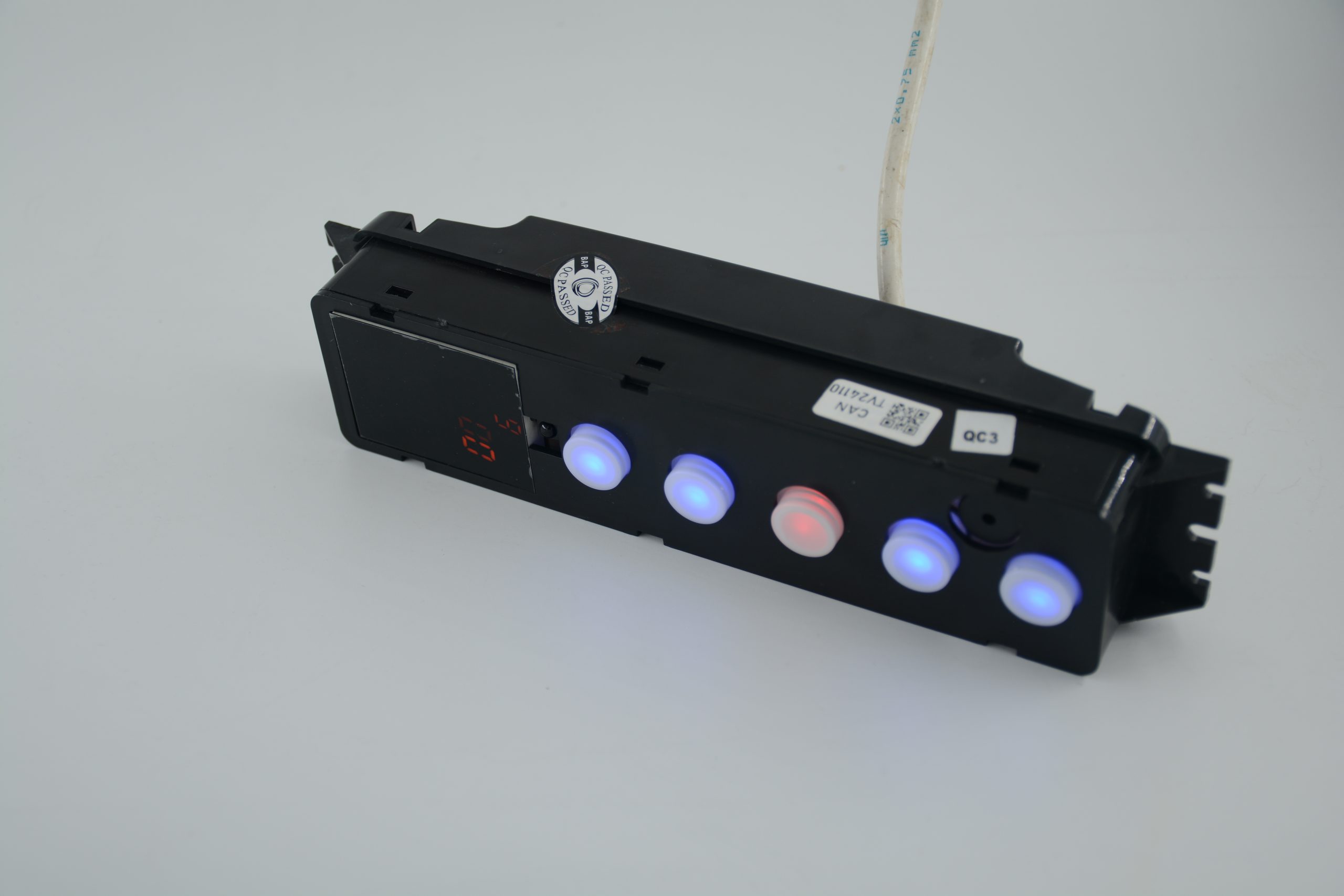

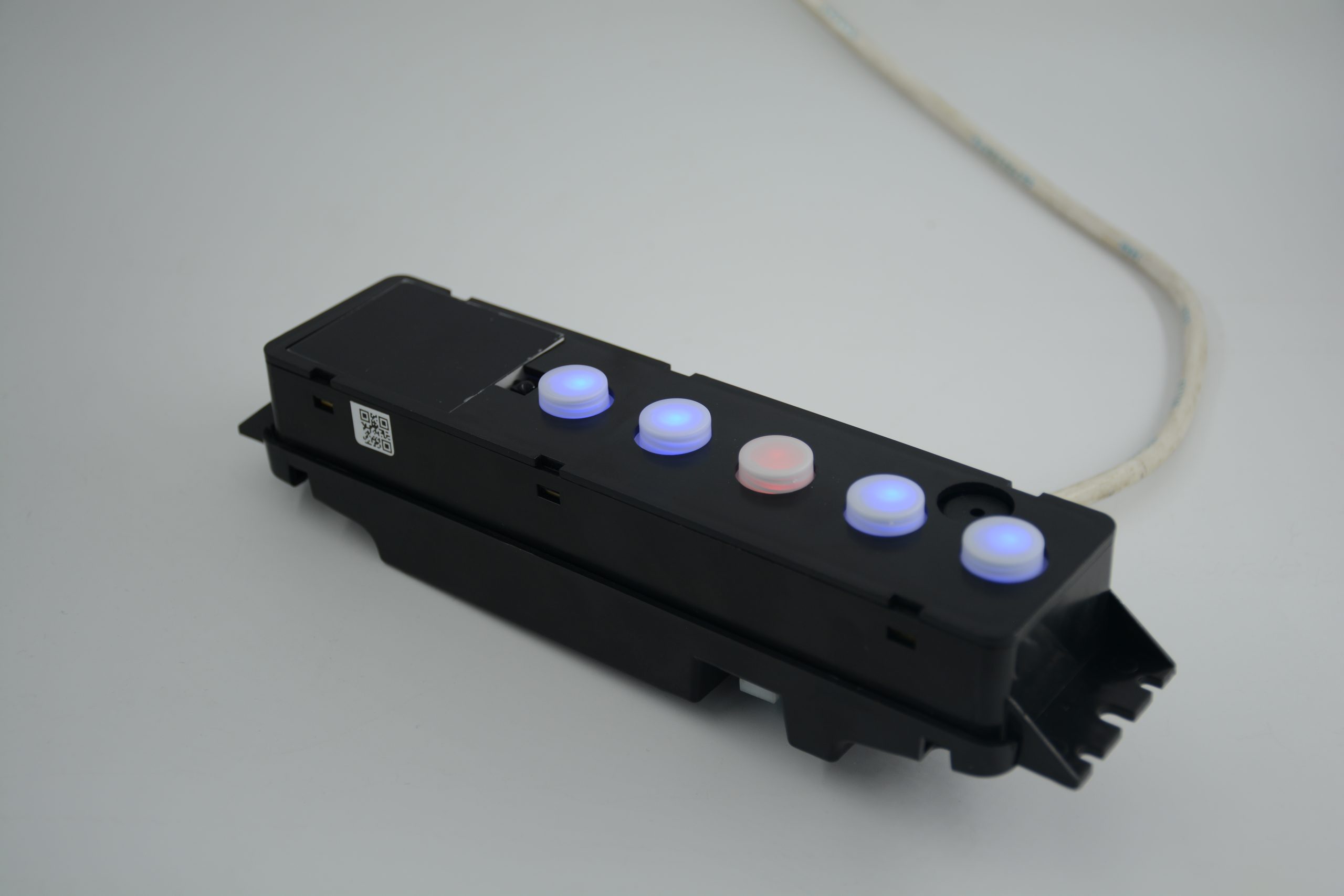

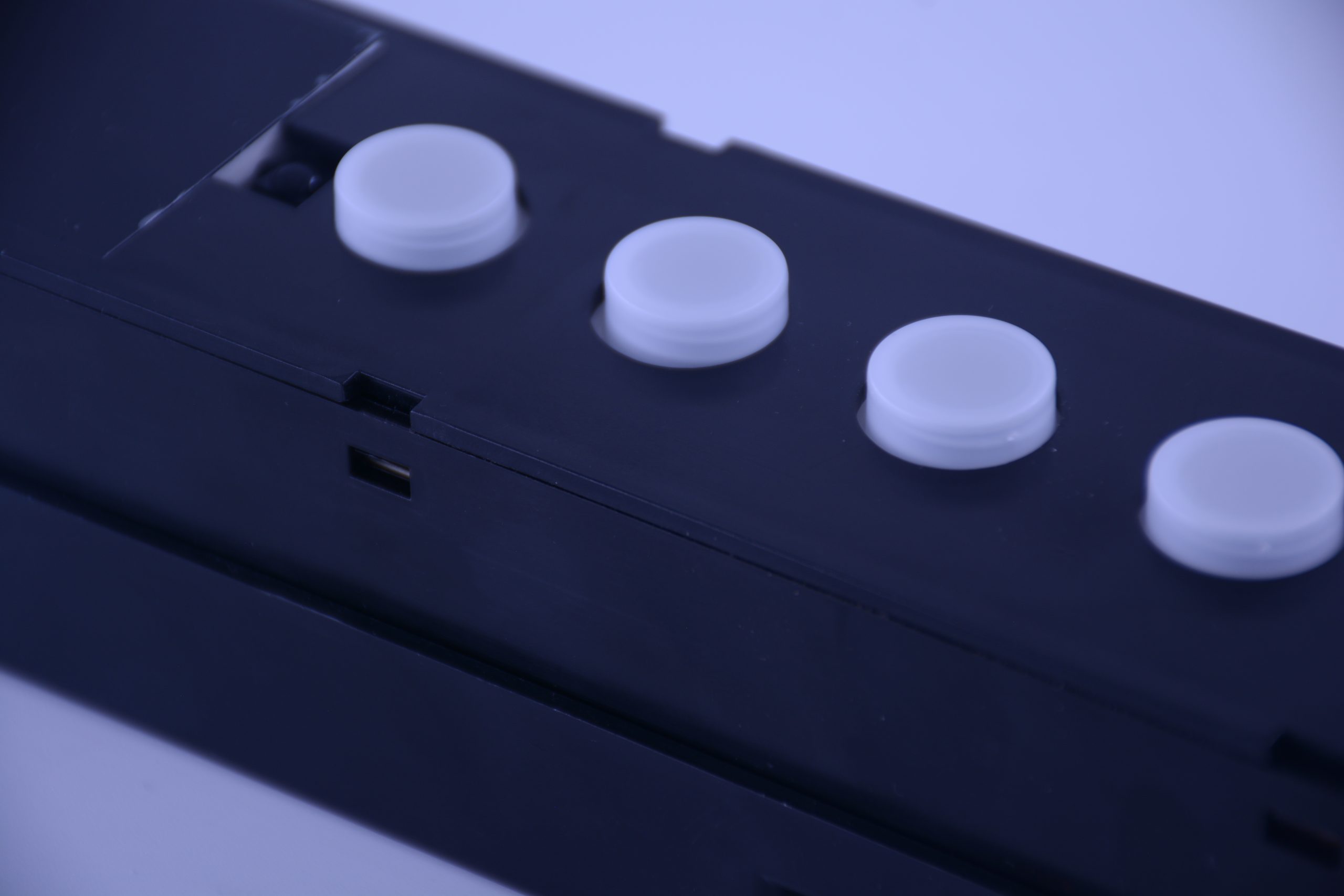

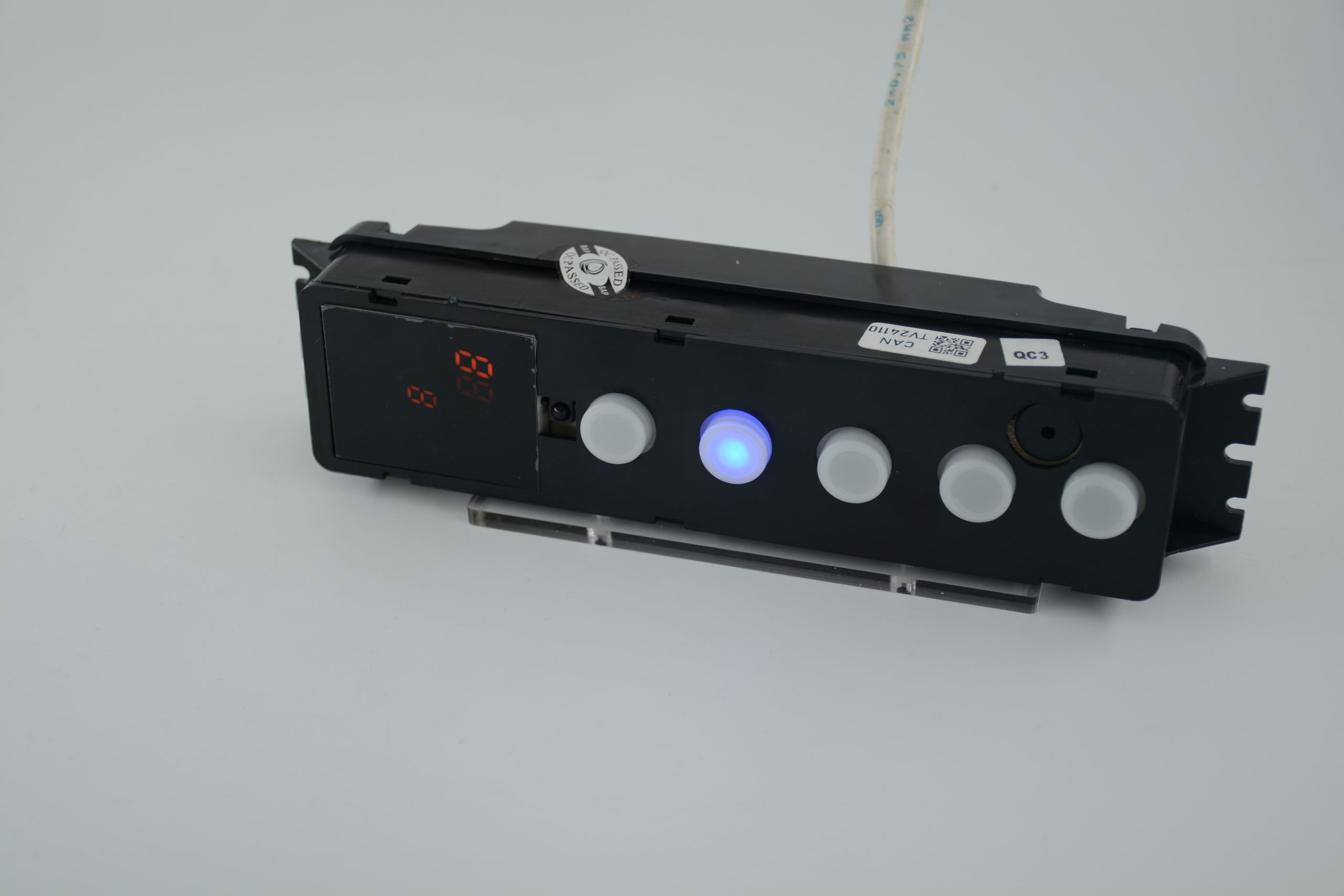

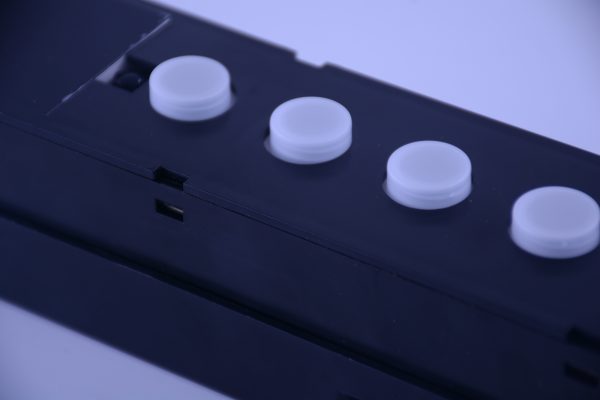

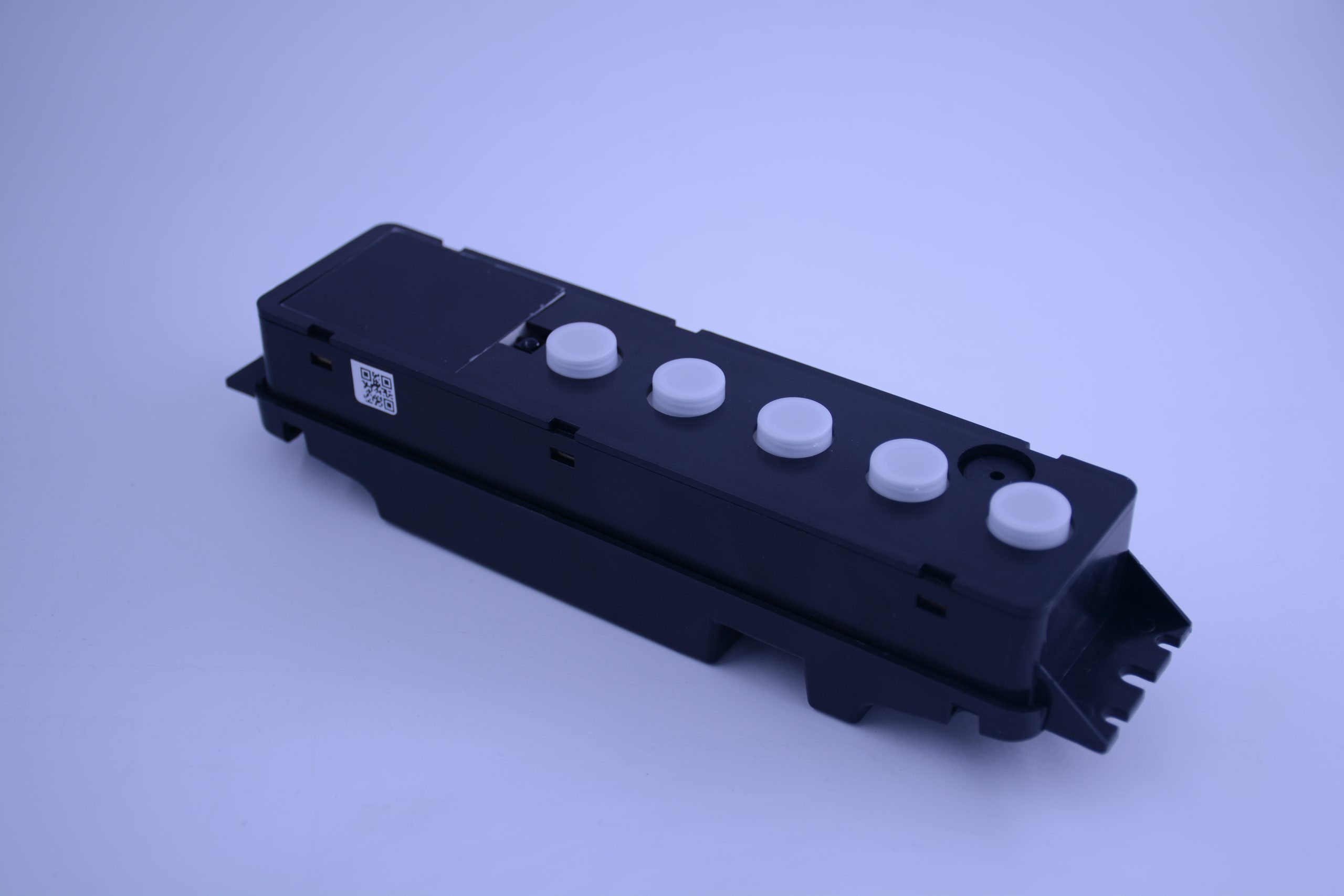

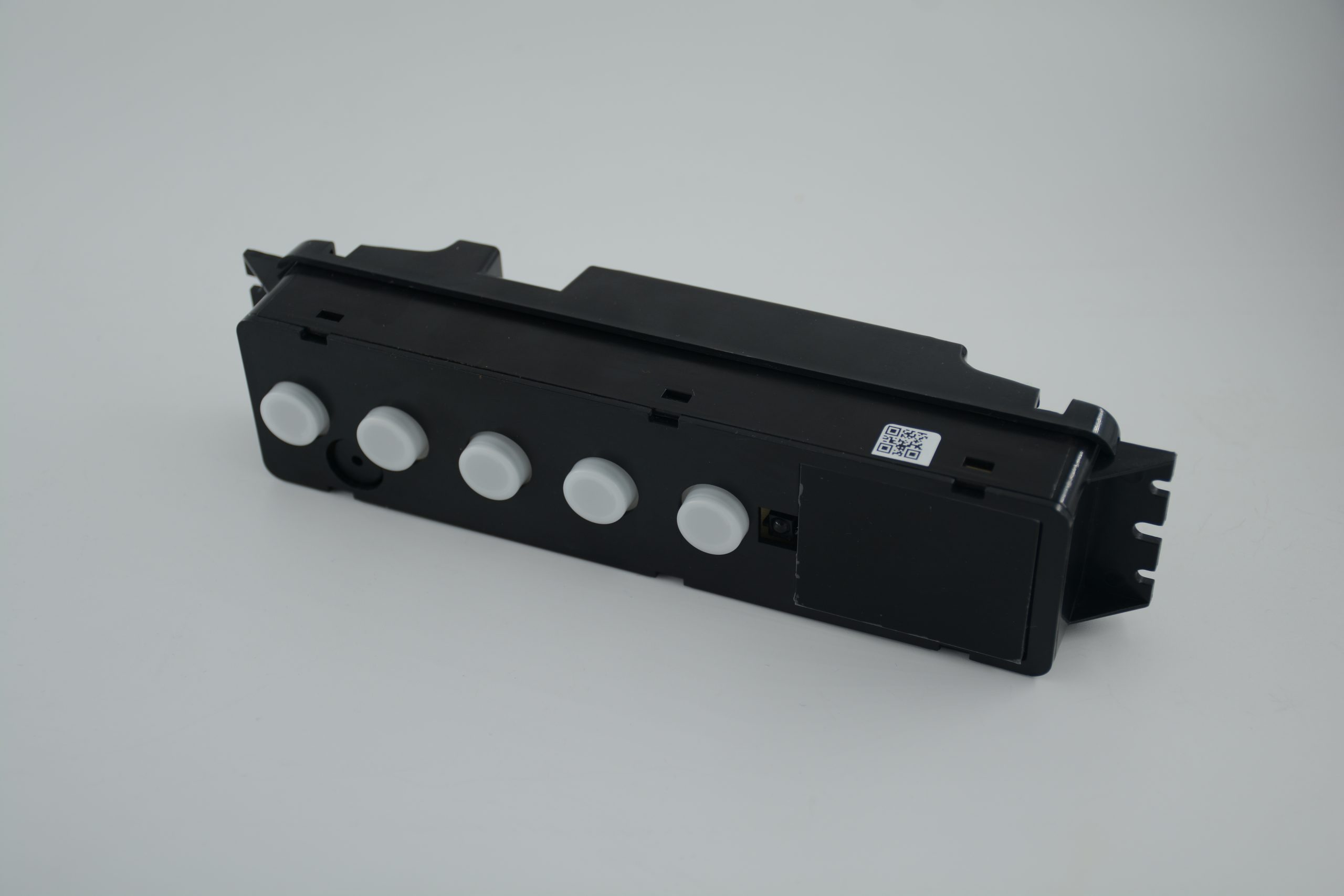

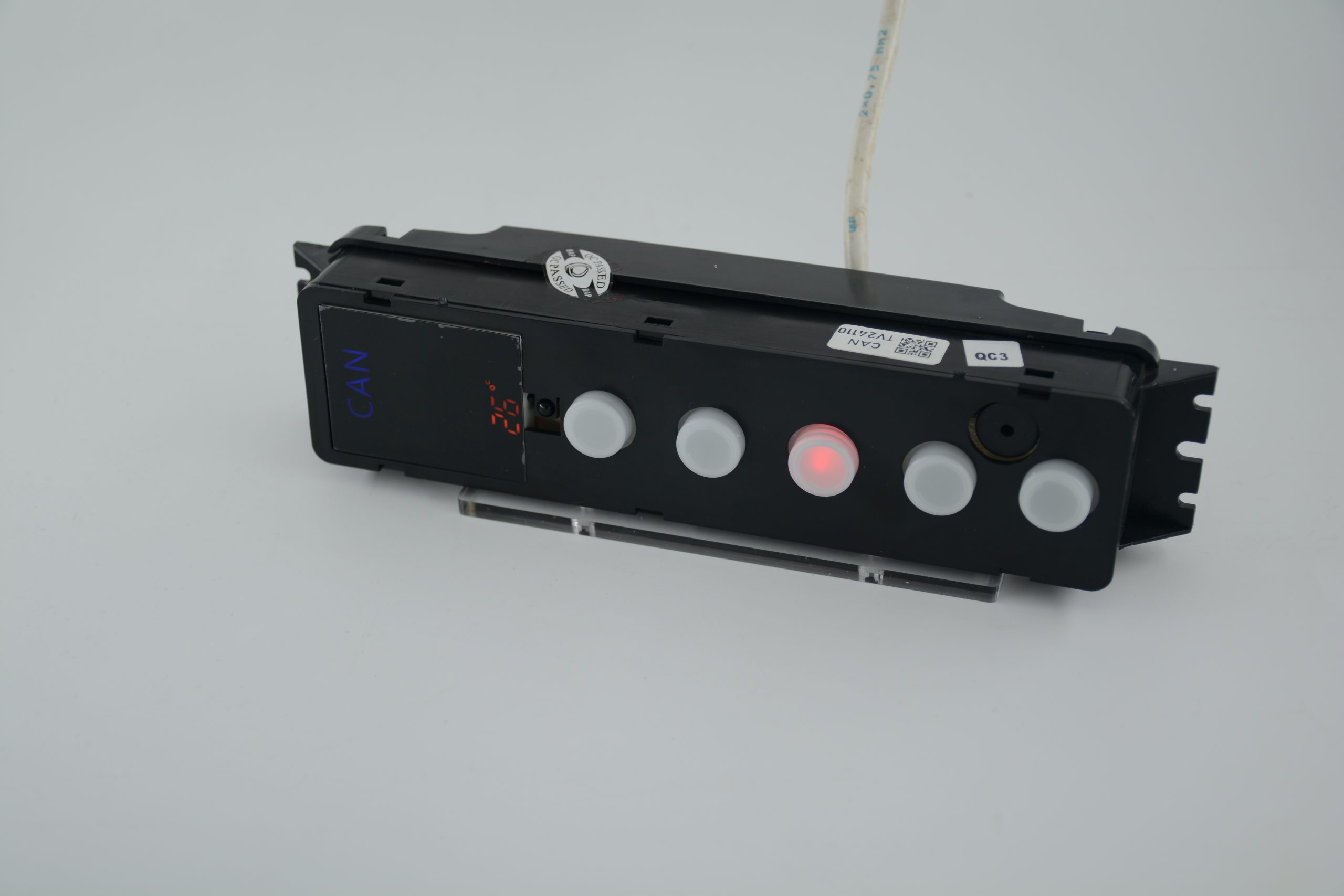

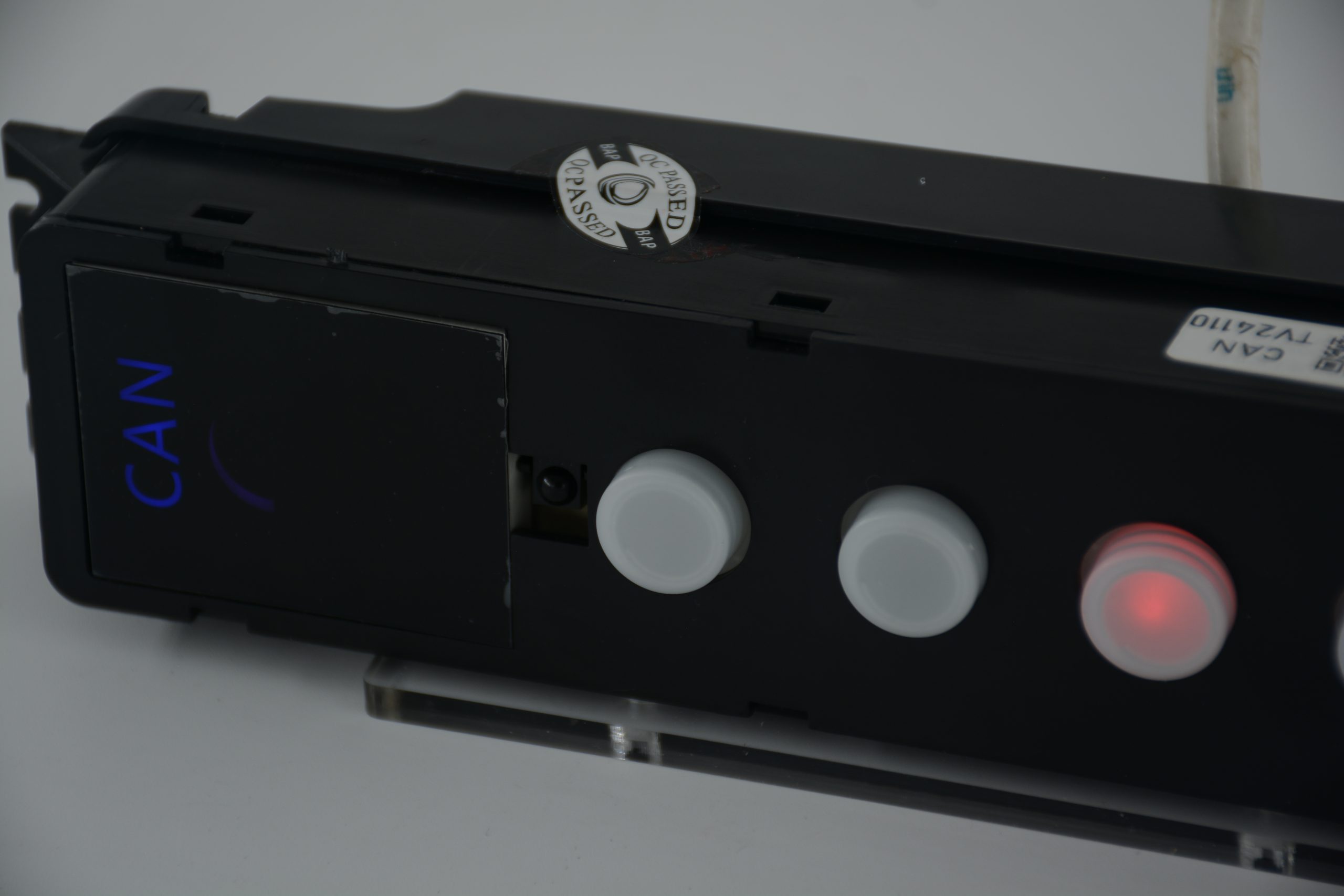

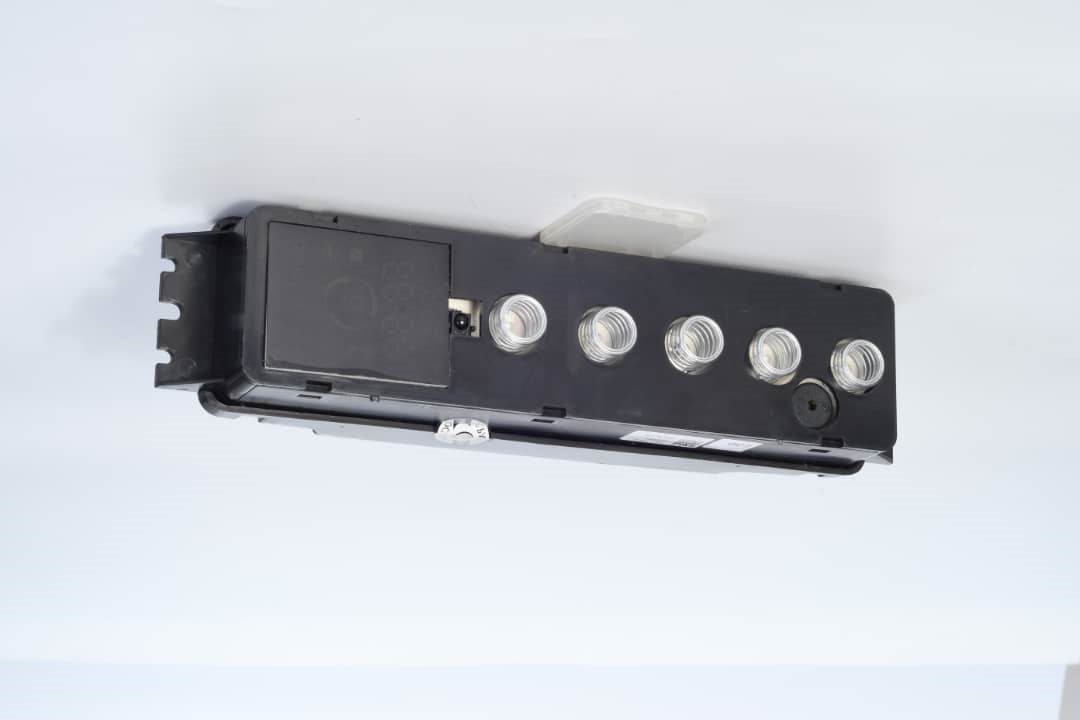

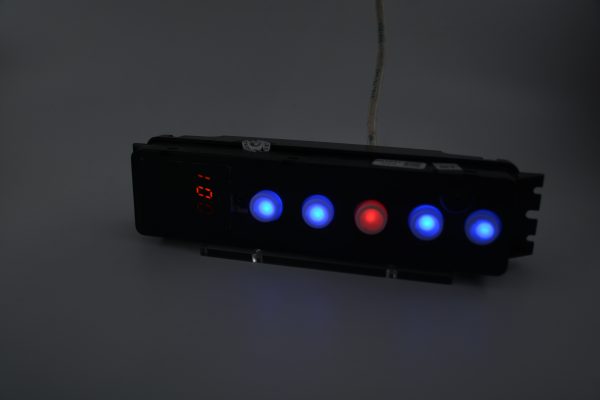

Hood touch key model BTK06

Category: ,
Tags: ,

Description

This product show and controls functionality of kitchen hood

the control in this key is touch and its installation is vertical.

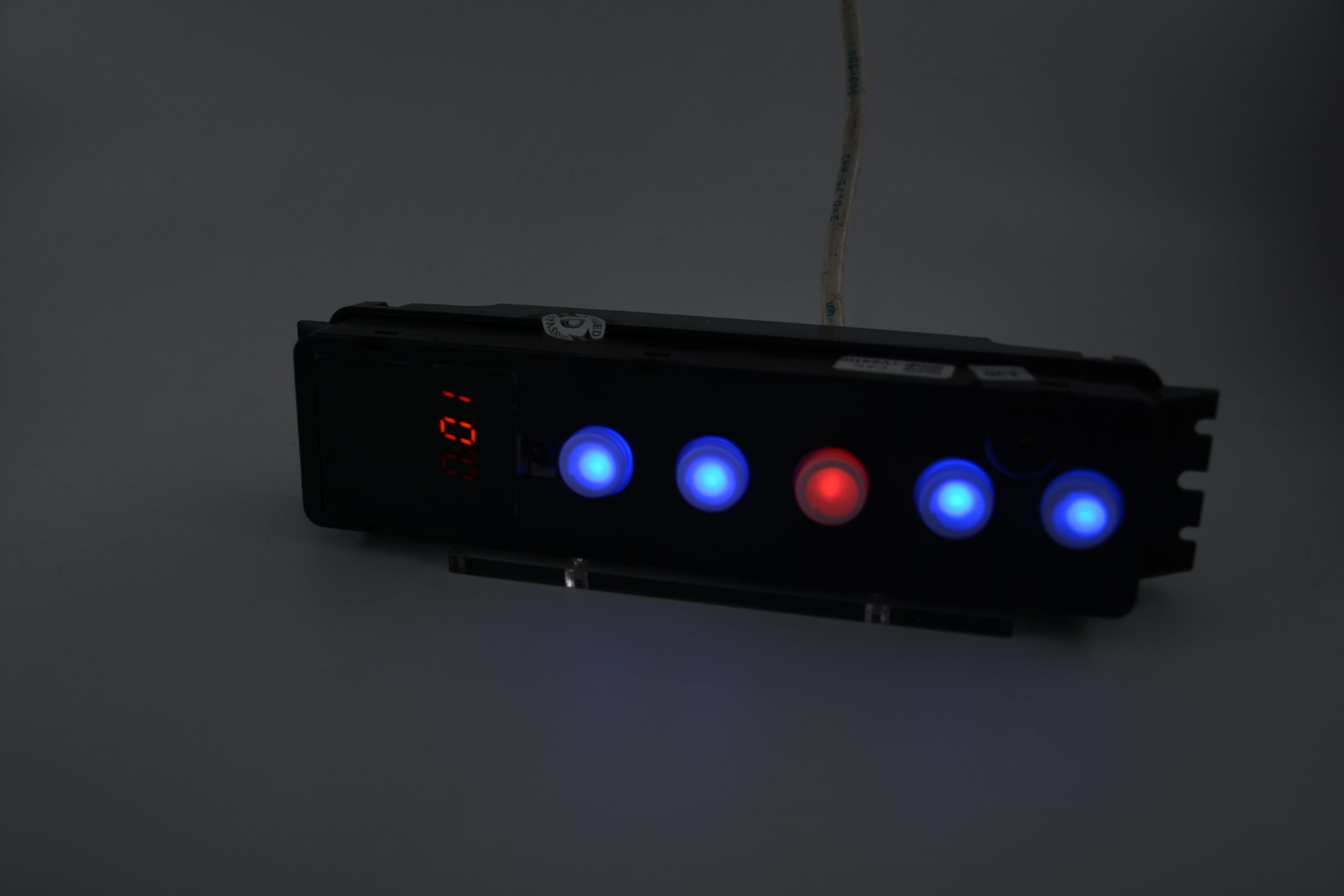

The large screen of this key has the ability to display motor speed, clock, timer, automatic mode, temperature and lamp.

The power supply board of this switch is in a box with a touch switch

this board has the ability to operate at voltages of 100 to 260 volts.

This switch has two 12V outputs for lamps. Each of them can flow up to 0.4 amps.

The BTK02V key has an infrared receiver can install an external temperature and gas sensor.

Additional information

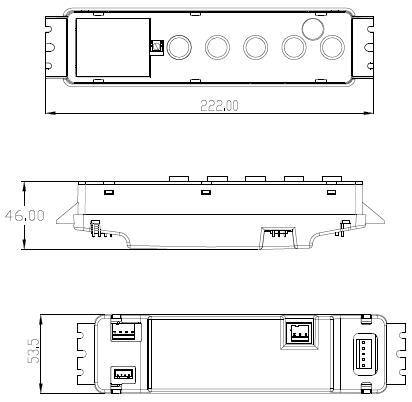

Dimensions 222 × 53 × 46 mm
Input Working Voltage

100~265vAC, 50(60)Hz
Power Supply type

Switching
Lamp Output Voltage

12v DC
Lamp Max Current

0.8 Amp
Lamp Output Max Number

2
Fan Speed Max Number

4
Fan Motor Max Current

2 Amps
Fan Speed Control Mode

Zero Crossing Mode
Ext. Sensor

4-wire(XH), MQ5 and NTC Sensor
Touch Key Number

5 with Backlight
Display Type

LED Display with LOGO
Remote Control type

Infra-Red
Timer

8 Hrs
Working Temperature Range

-20~85 ˚C
Color

Black
Enclosure Material

Fire Retardant ABS(PP)
