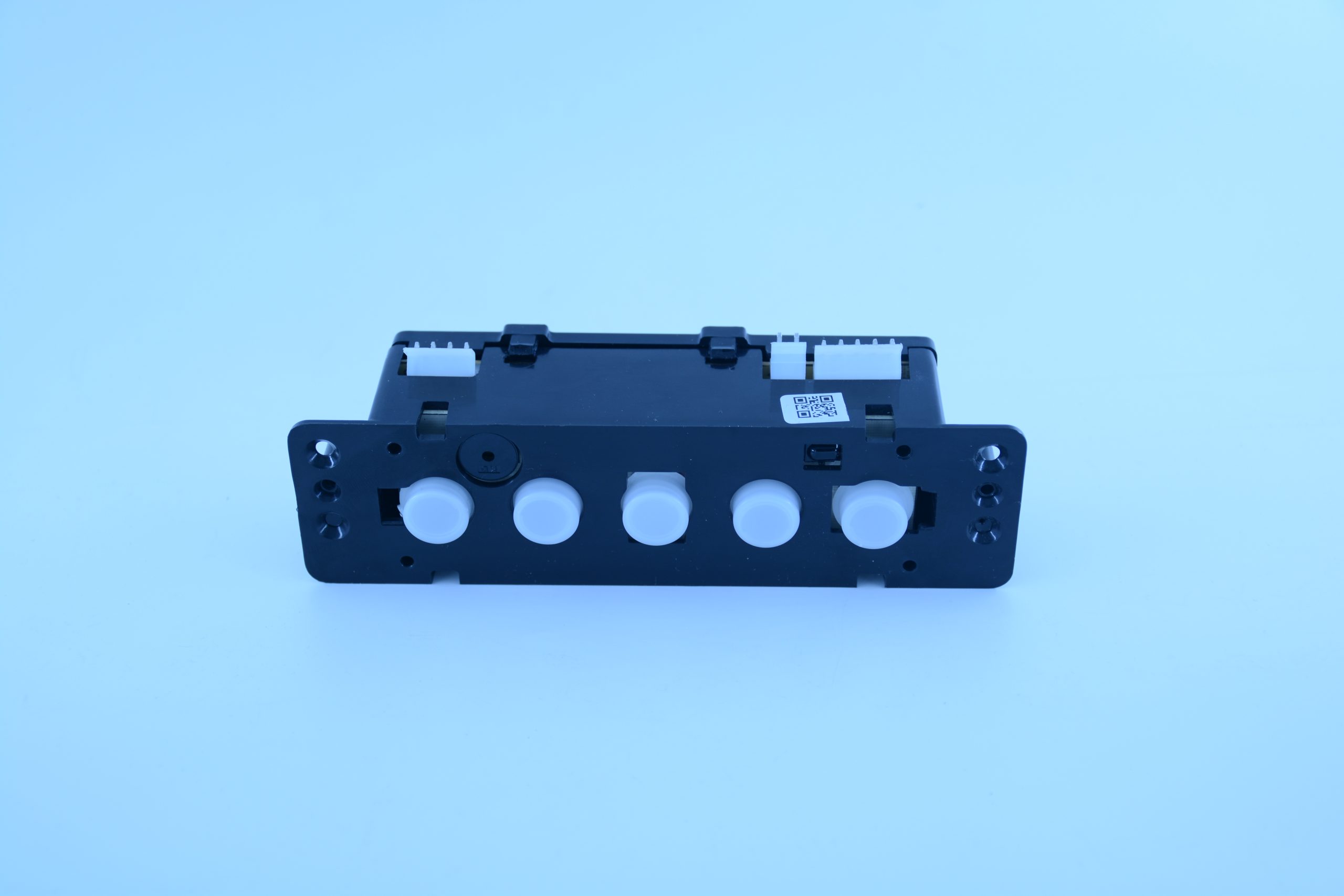

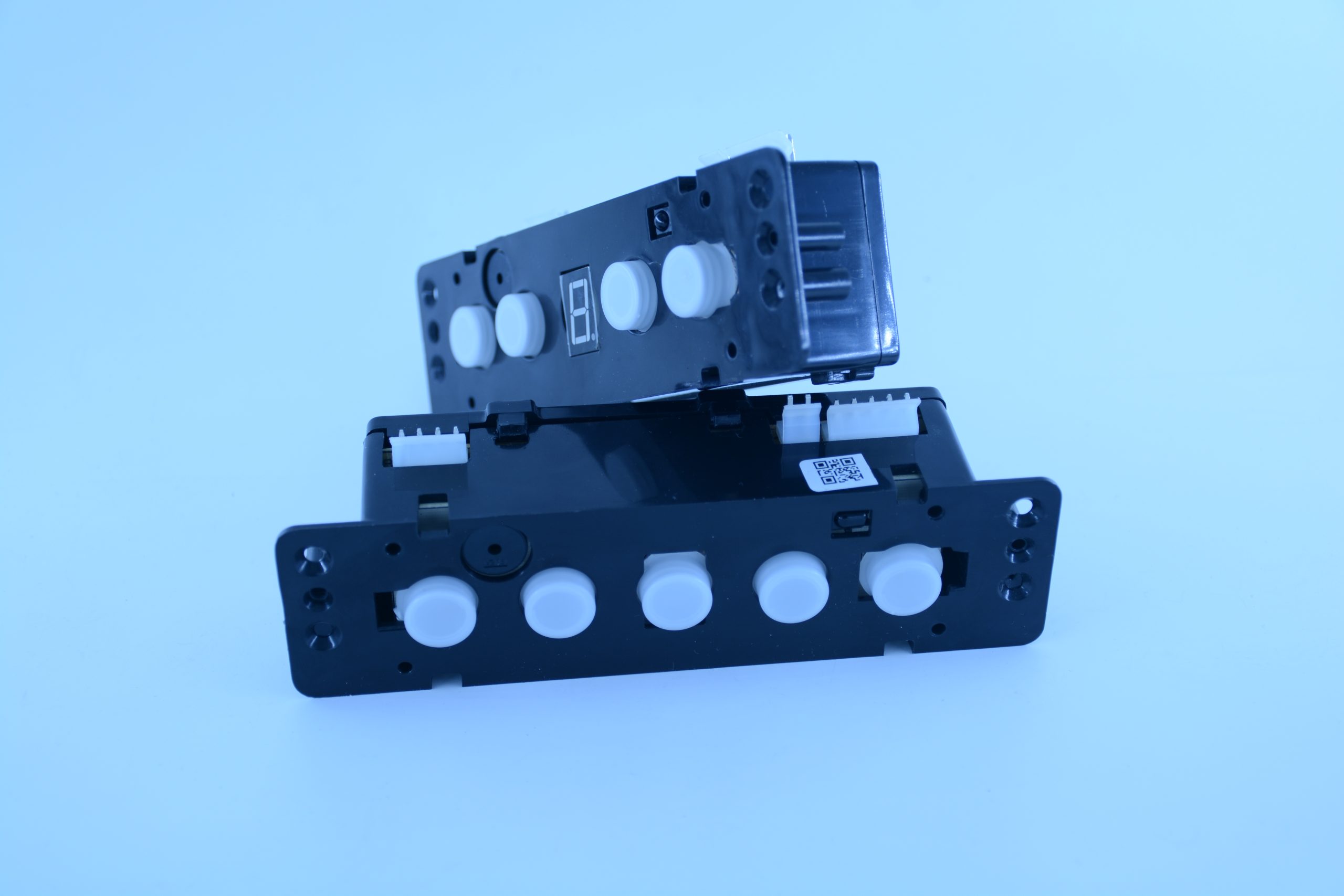

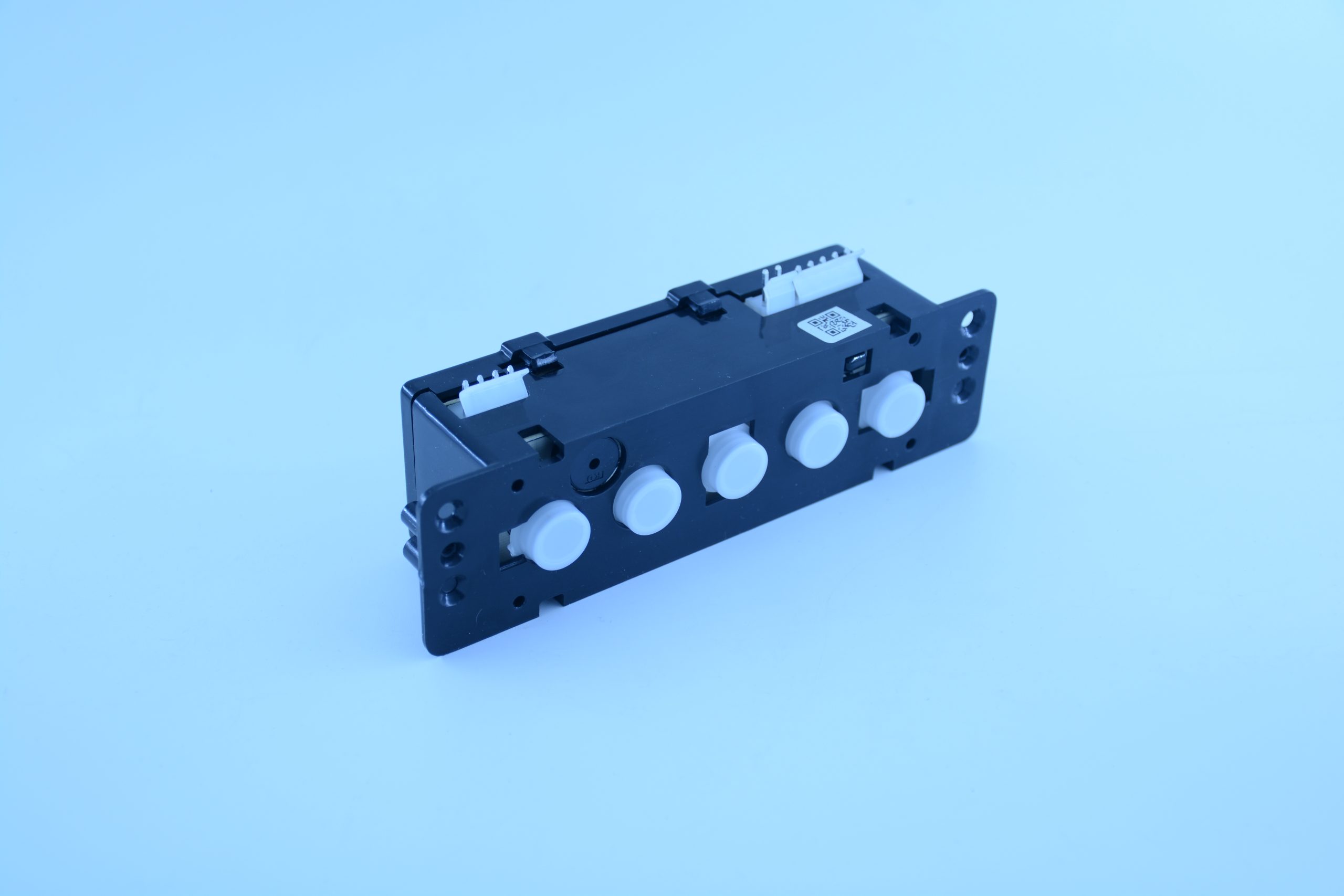

hood touch key model btk02k
This product display and controls the function of the kitchen hood
the control in this key is touch.
horizontally or vertically installation available for this product
The power supply board of this switch is in a box with a touch switch
this board has the ability to operate at voltages of 100 to 260 volts.
This switch has two 12V outputs for lamps. Each of them can flow up to 0.4 amps.
The BTK02K key has an infrared receiver can install an external temperature and gas sensor.
| Input Working Voltage | 100~265vAC, 50(60) Hz |
|---|---|
| Power Supply Type | Switching |
| Lamp (LED) Output Voltage | 12vDC |
| Lamp Max Current | 0.8Amp |
| Lamp Max Number | 2 |
| Fan Speed Max Number | 4 |
| Fan Motor Max Current | 2 Amps |
| Fan Speed Control Mode | Zero Crossing Mode |
| Ext. Sensor | 4-wire (XH), MQ5 and NTC Sensor |
| Capacitive Touch Key Number | 5 with Backlight |
| Touch Key Operations | Power, Lamp, UP, Down, Timer, Auto, Backlight, Reset |
| Display Type | NO |
| Remote Control Type | Infra-Red |
| Automatic Mode | Yes, if Ext. Sensor has connected |
| Timer Max Time | 8Hrs |
| Working Temperature Range | -20~85 ˚C |
| Enclosure Material and Color | Fire Retardant ABS(PP)- Black |
