BTK02H

Description

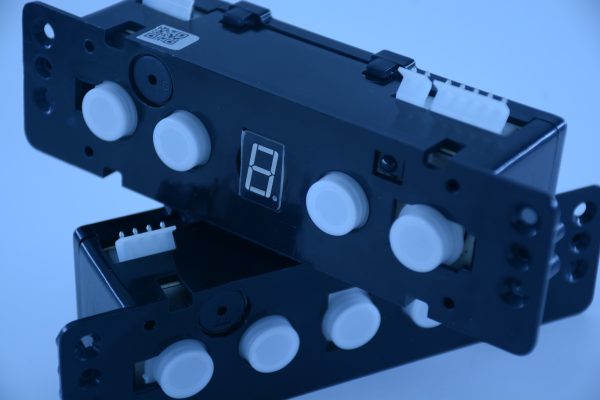

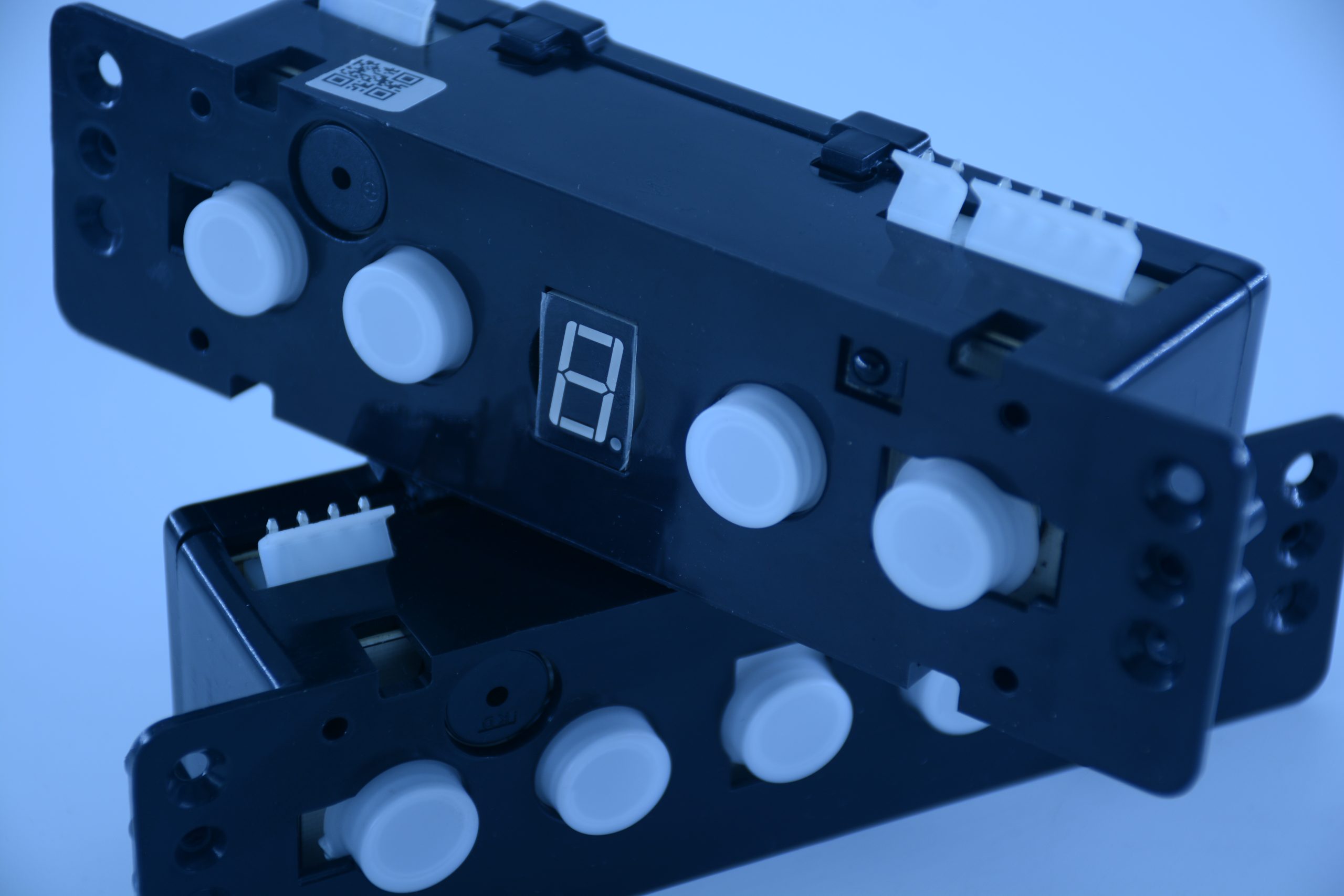

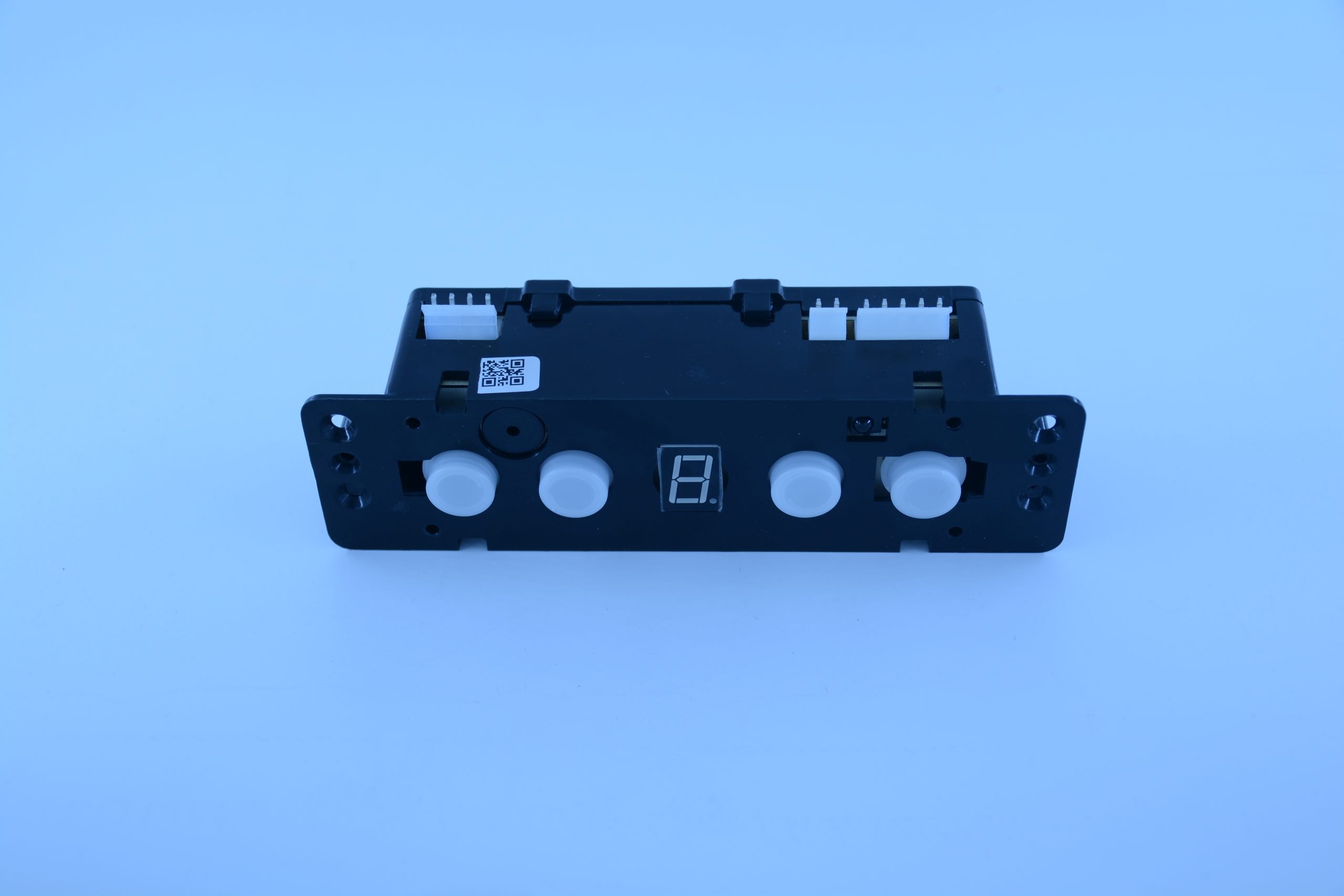

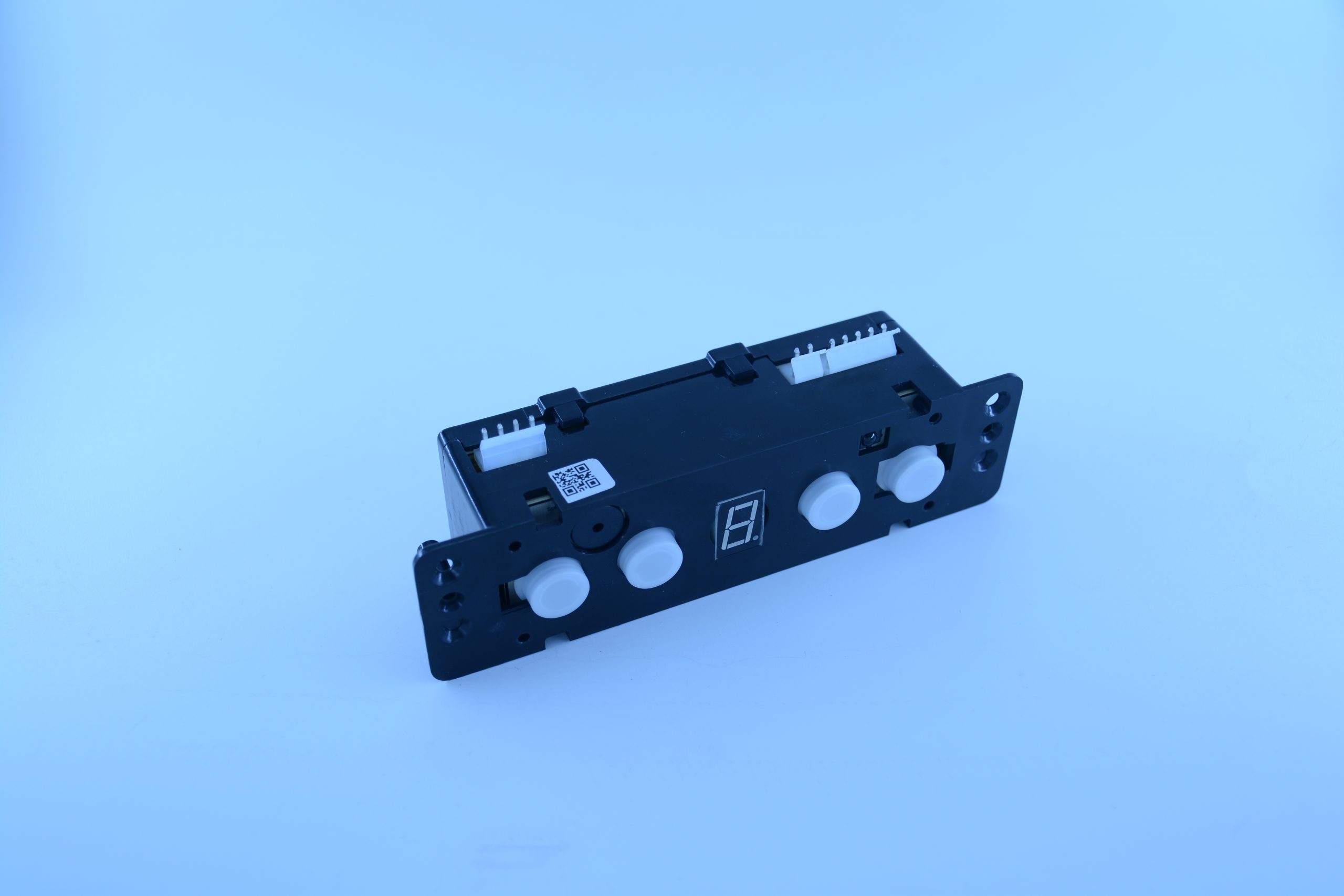

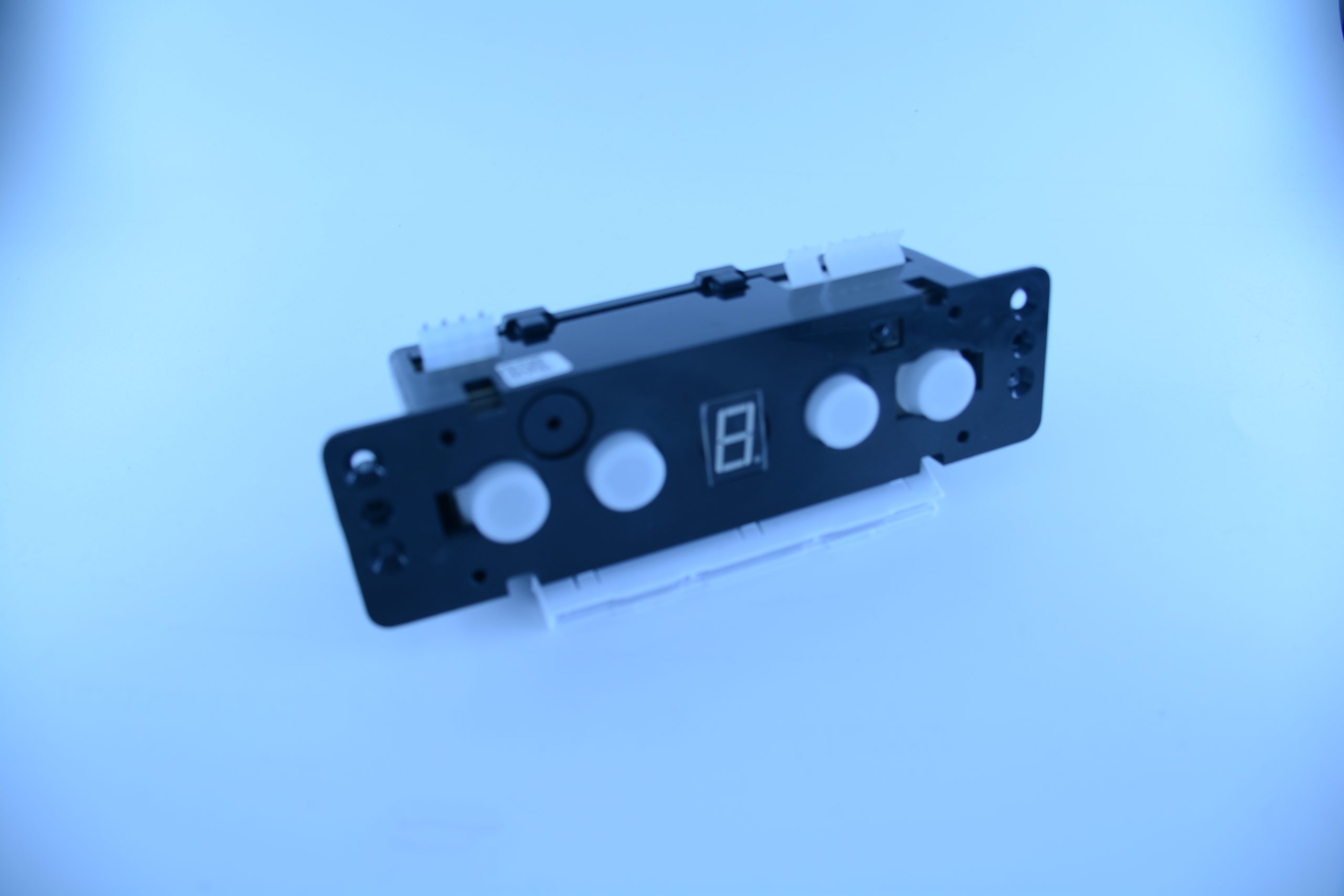

This product show and controls functionality of kitchen hood

the control in this key is touch and its installation is Horizontal.

The display of this key is a seven-segment

motor speed display with a number, the lamp with a dot, and the automatic mode with the letter A.

The power supply board of this switch is in a box with a touch switch

this board has the ability to operate at voltages of 100 to 260 volts.

This switch has two 12V outputs for lamps. Each of them can flow up to 0.4 amps.

The BTK02H key has an infrared receiver can install an external temperature and gas sensor.

Input Working Voltage	100~265vAC, 50(60) Hz
Power Supply Type	Switching
Lamp(LED) Output Voltage	12vDC
Lamp Max Current	0.8Amp
Max Lamp Output Number	2
Max Fan Speed Number	4
Fan Motor Max Current	2 Amps
Fan Speed Control Mode	Zero Crossing Mode (without any Arcs)
Ext. Sensor	4-wire (XH), MQ5 and NTC Sensor
Capacitive Touch Key Number	4 with Backlight
Touch Key Operations	Power, Lamp, UP, Down, Timer, Auto, Backlight, Reset
Display Type	7 Segment LED Display
Remote Control Type	Infra-Red
Automatic Mode	Yes, if Ext. Sensor has connected
Timer Max Time	8Hrs
Working Temperature Range	-20~85 ˚C
Enclosure Material and Color	Fire Retardant ABS(PP)- Black
