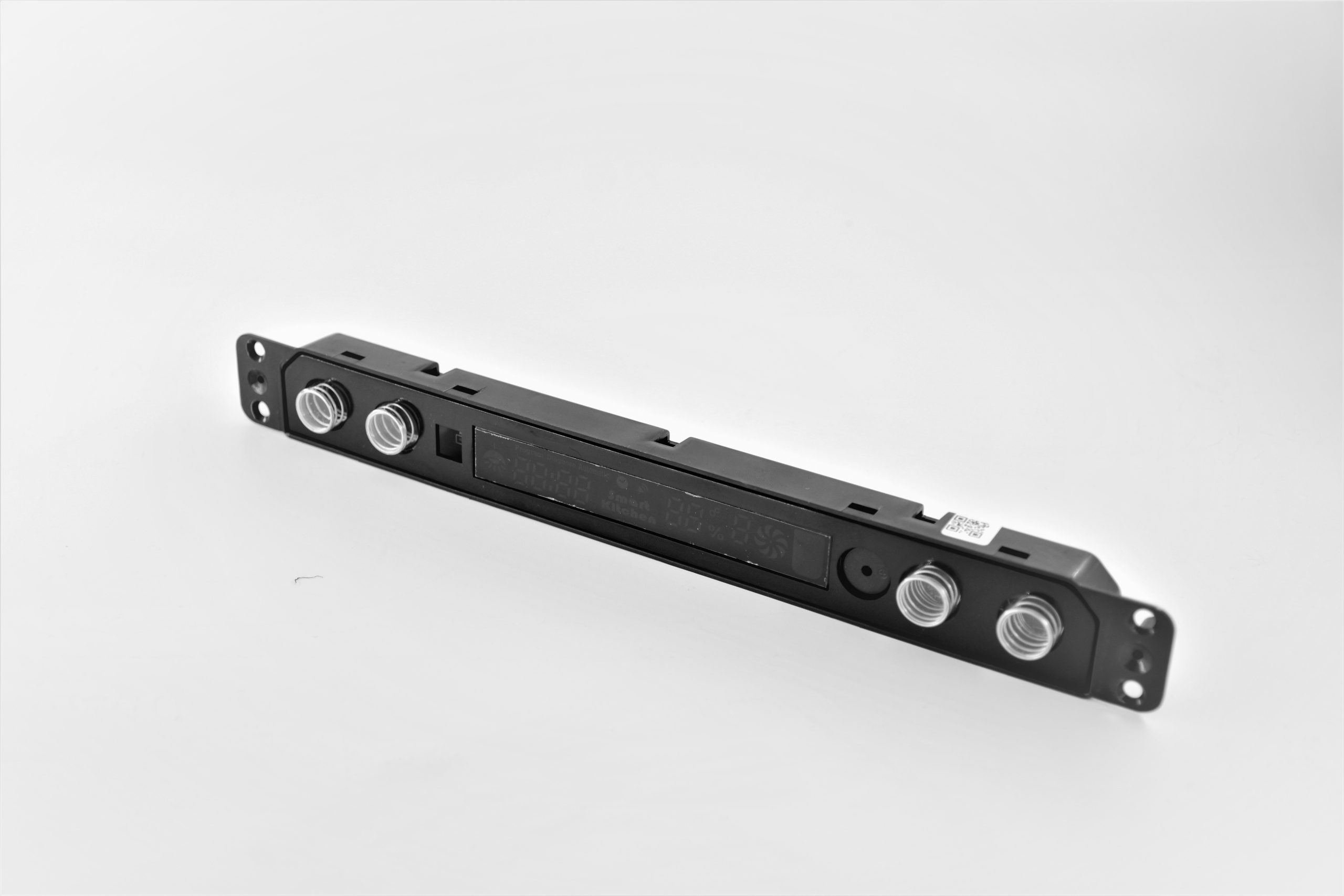

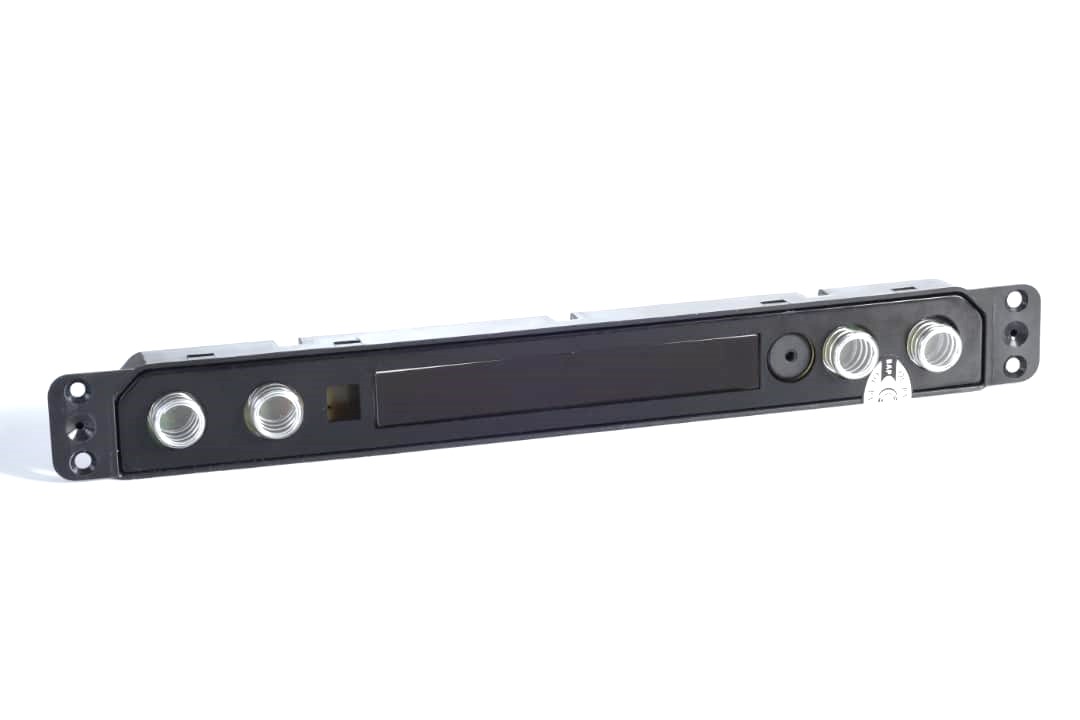

Hood touch key model btk01
This product shows and controls functionality of kitchen hood
the control in this key is touch
its display has the ability to display engine speed, temperature, current time and timer.
This key has an infrared receiver and an internal temperature sensor
it has the ability to install an external temperature and gas sensor.

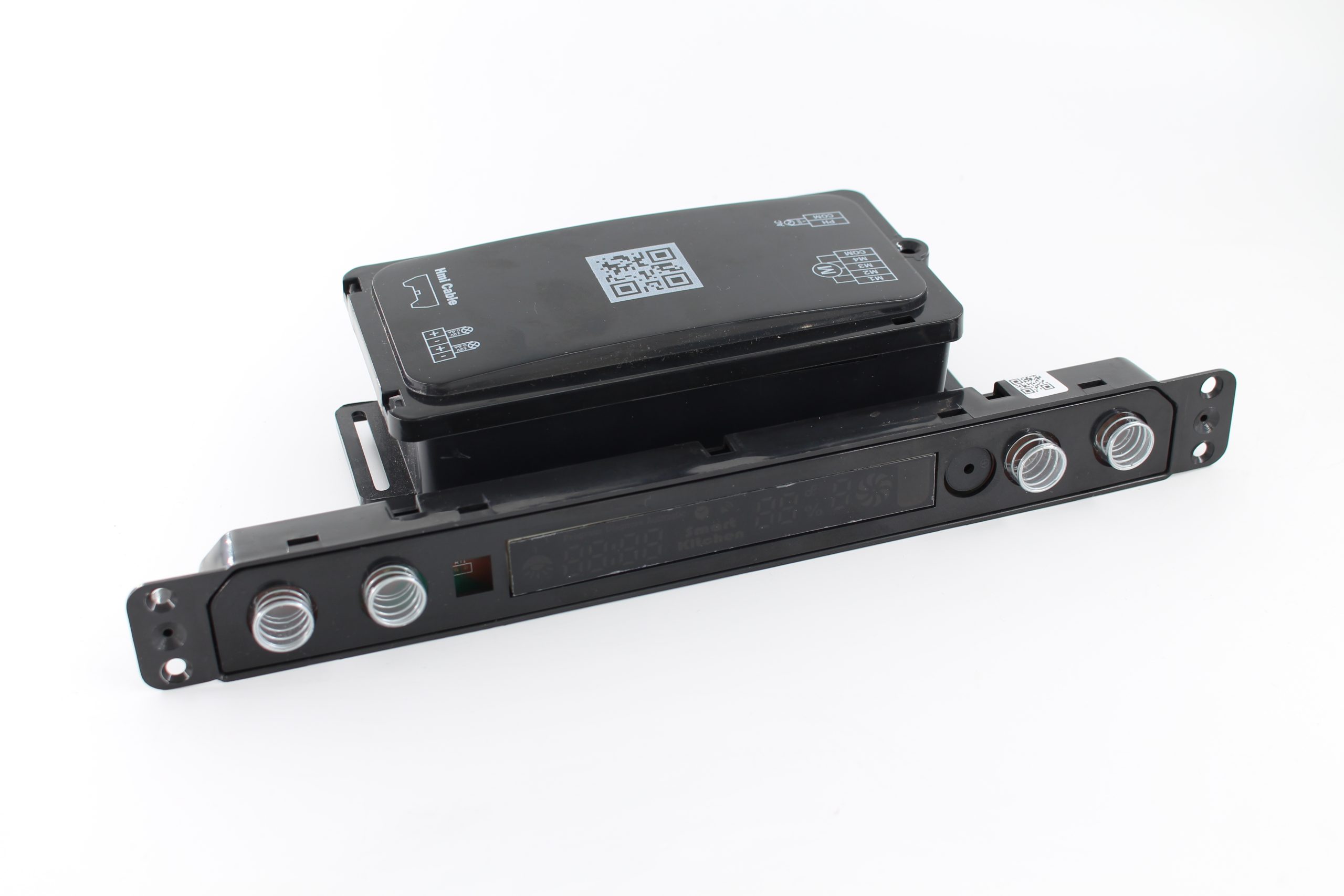

The BTK01 board communicate with the BMC01 board by a 10-wire flat cable

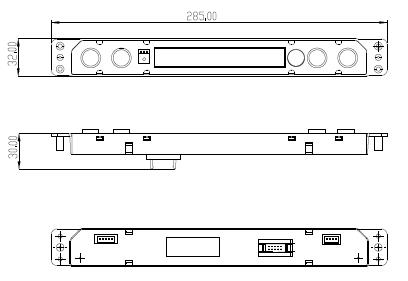

| Dimensions | 285 × 32 × 30 mm |
|---|---|
| Input Working Voltage | 3.3 ~ 5v DC |

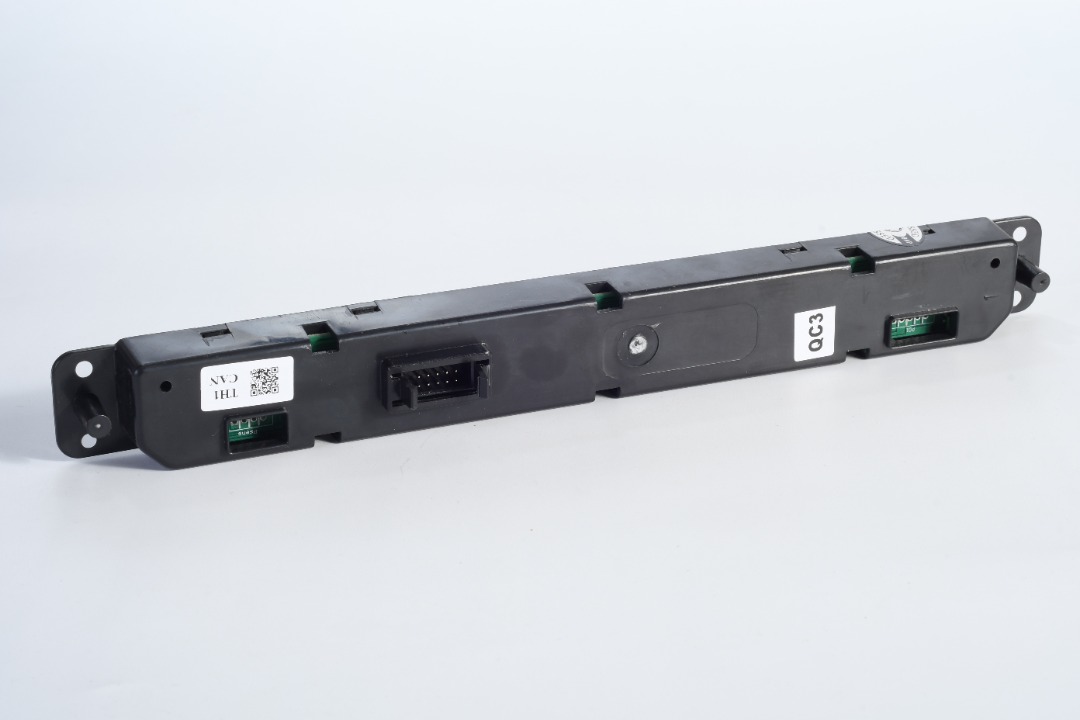

| Communication with Driver Board | 10-Wire (IDC 2×5), Parallel |
| Lamp(LED) Output Mode | PWM with Fade |
| Ext. Sensor | 4-wire (XH), MQ5 and NTC Sensor |
| Number of Capacitive Touch Key | 4 with Backlight |
| Display Type | LED Display with LOGO and IR-Sensor |
| Remote Control type | Infra-Red |
| Fan Speed Max Number | 4 |
| Timer | 8 Hrs |
| Internal Sensor | NTC (0~99 ˚C) |
| Working Temperature Range | -20~85 ˚C |
| Color | Black |
| Enclosure Material | Fire Retardant ABS(PP) |
