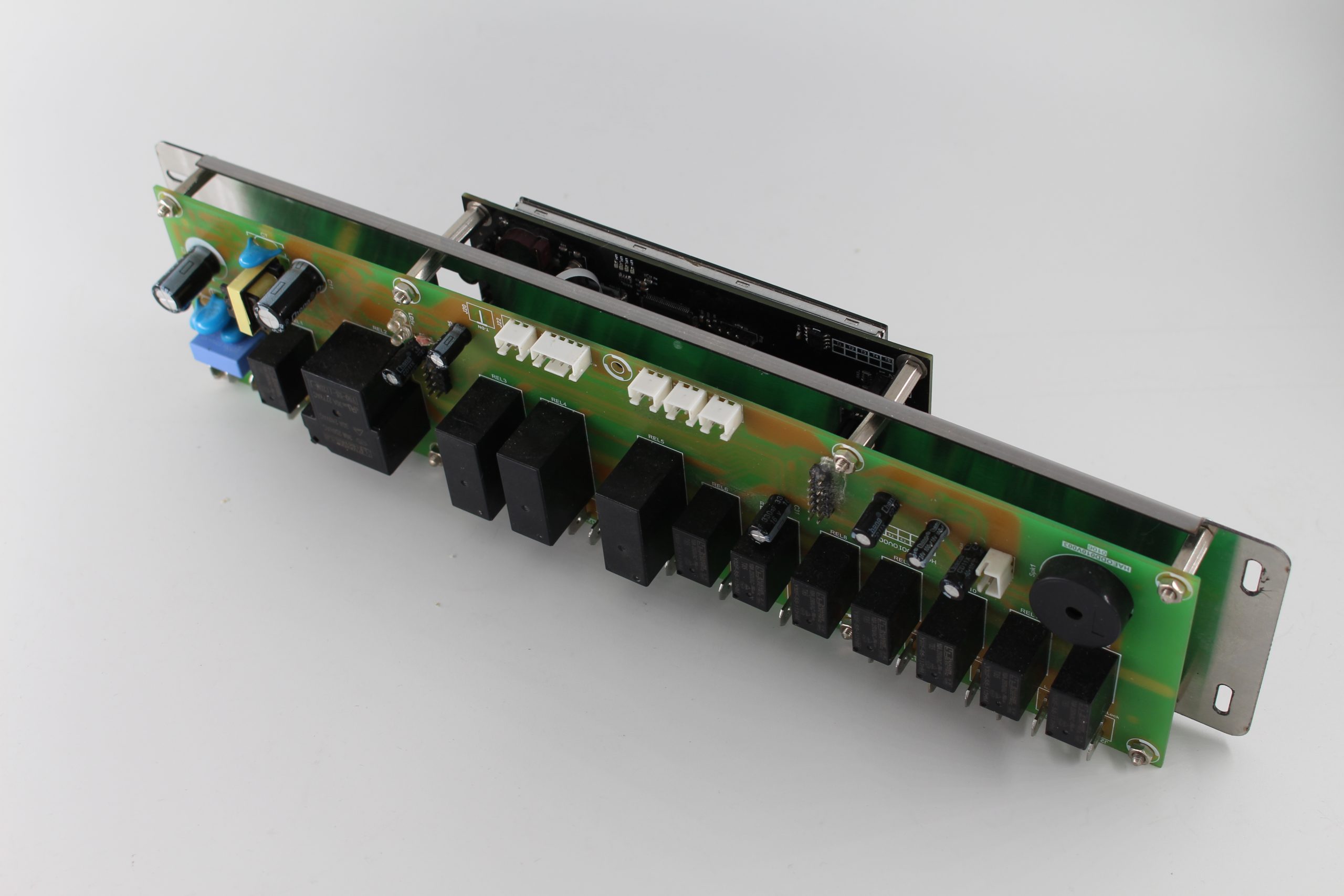

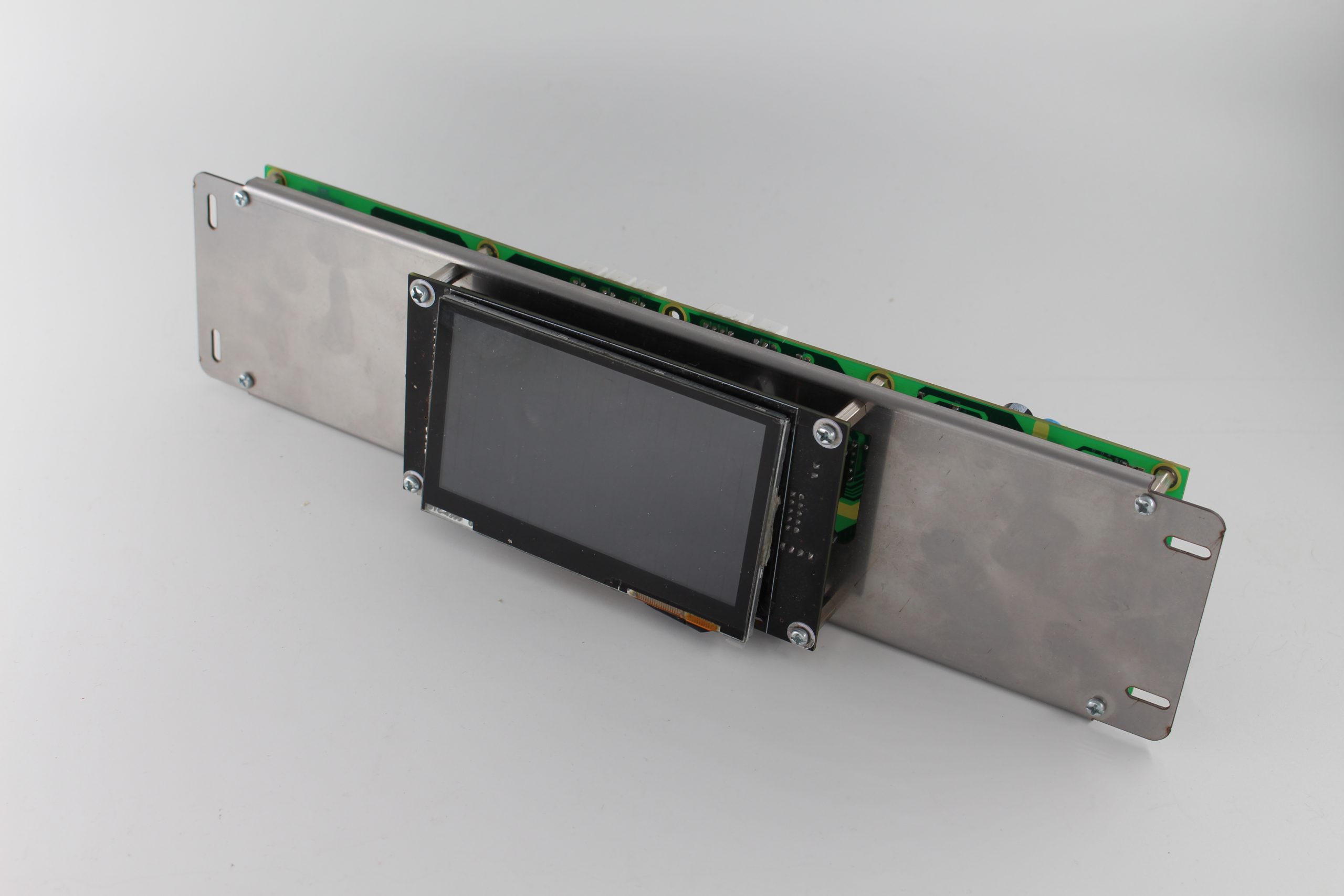

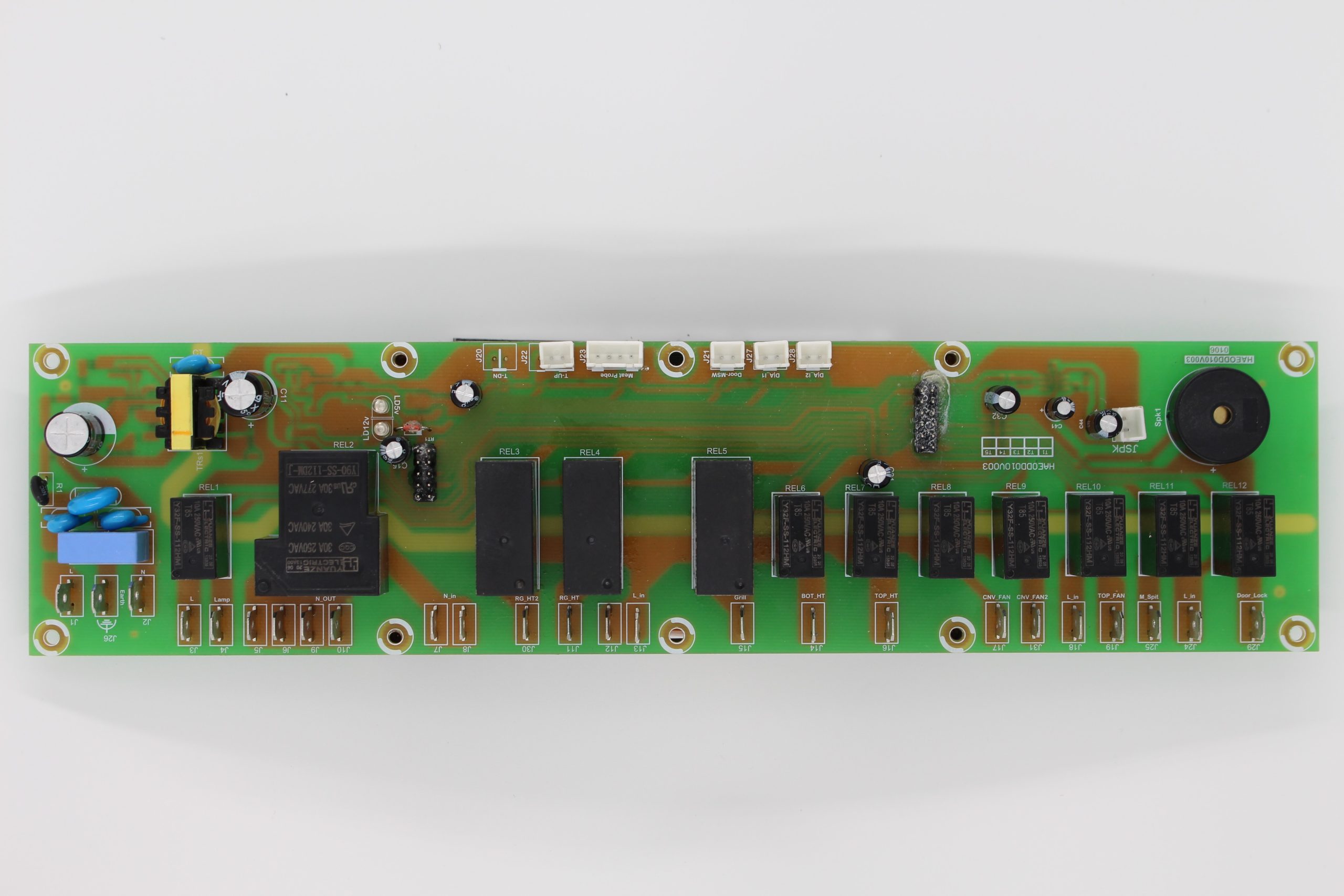

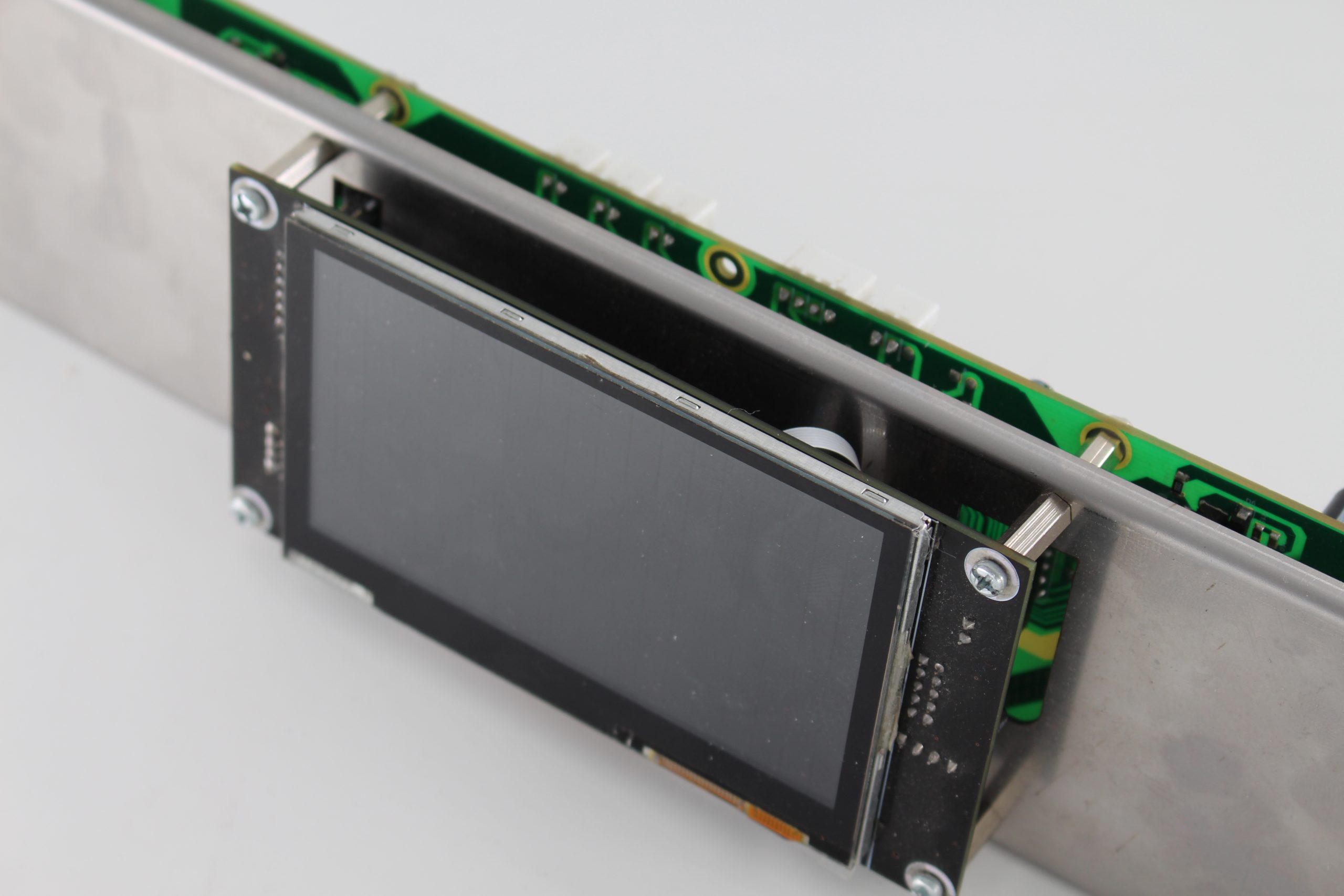

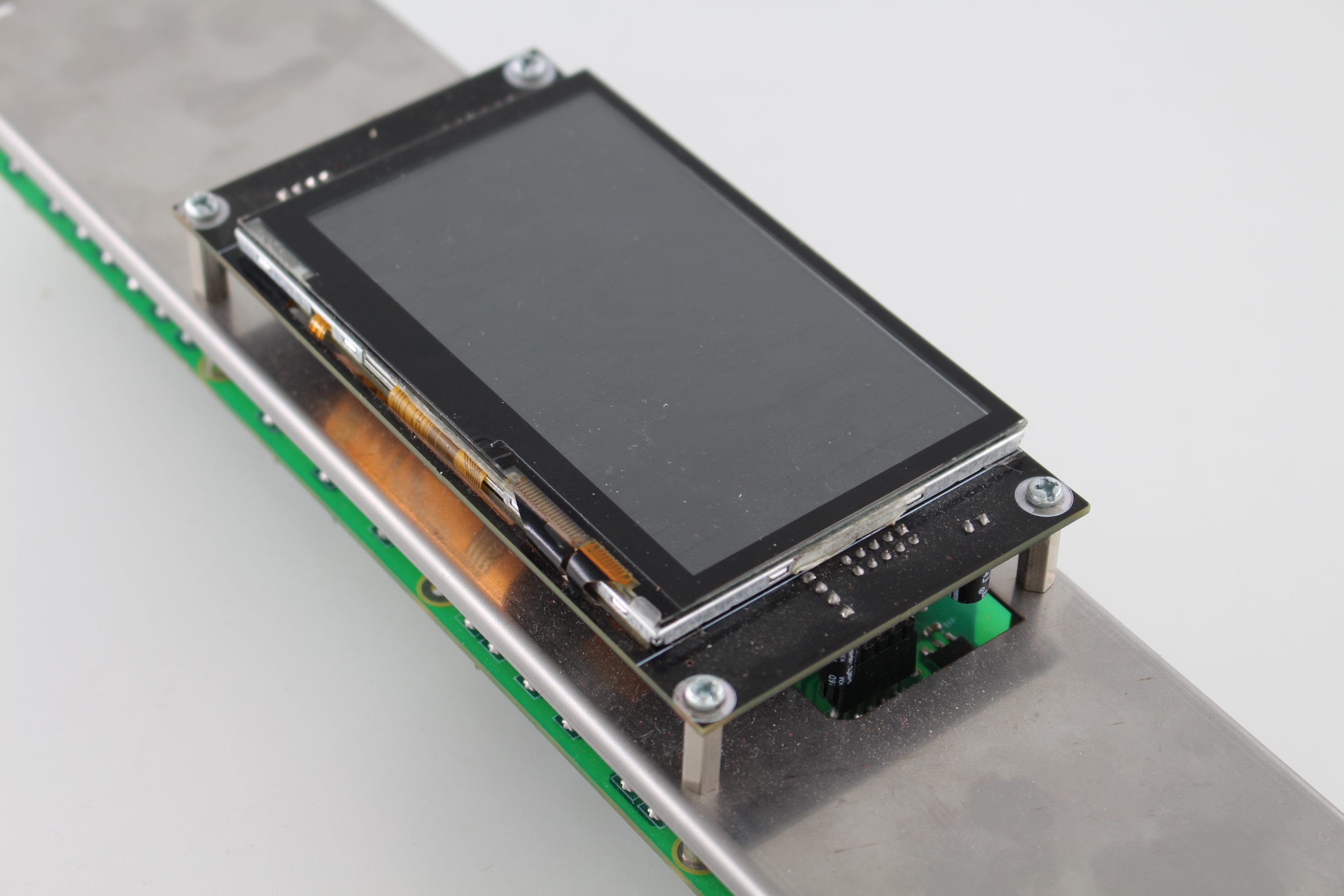

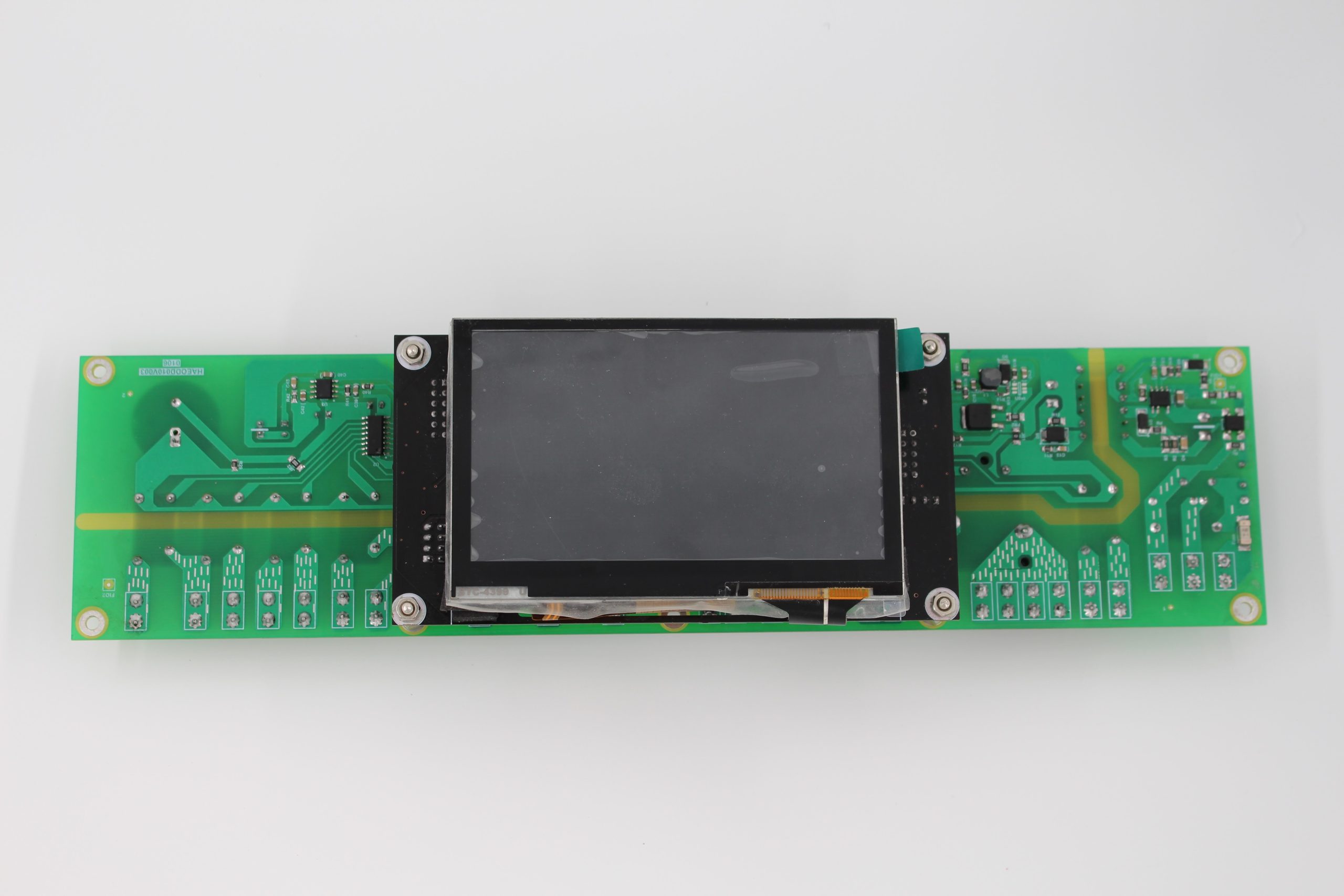

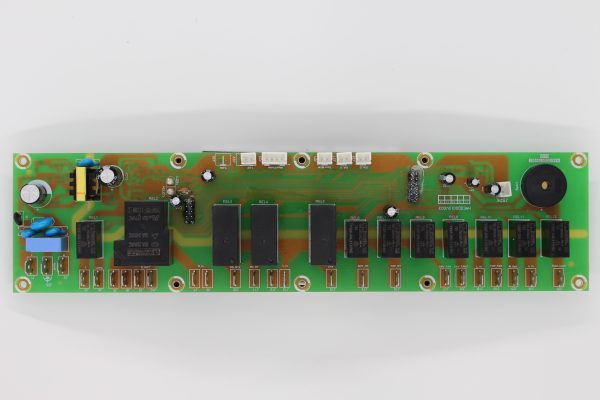

The BOT10 electric oven board set
The BOT10 electric oven consists of two separate key and control boards.
this board has multiple new features such as full touch board, TFT display, multistep cooking, smart cooking, multiple languages and …
user friendly and charming graphics with ability of personalizing
large variety of cooking programs that user can select them freely
saving desired recipes with desired names
various internal and external sensors for control system safety
| Input Working Voltage | 100~265vAC, 50(60)Hz |
|---|---|
| Power Supply type | Switching |
| Display type | RGB TFT Display + Capacitive Touch |
| Cooking Schedules | 35 Mode + several Automatic cooking Recipe |
| Oven Temperature | 50~250 ˚C |
| Meat Probe | Yes |
| Turbo Mode | Yes |
| Heaters | Top, Bottom, Grill, Ring |
| Fans | Convection, Cooling |
| Spit Motor | Yes |
| Oven Chamber Temperature Sensor | 3 (NTC or RTD) |
| Working Temperature Range | -20~85 ˚C |
| Power & Relay Board type | Compact |
| ISIRI 1562-1 Standard Compliance | Pass |
