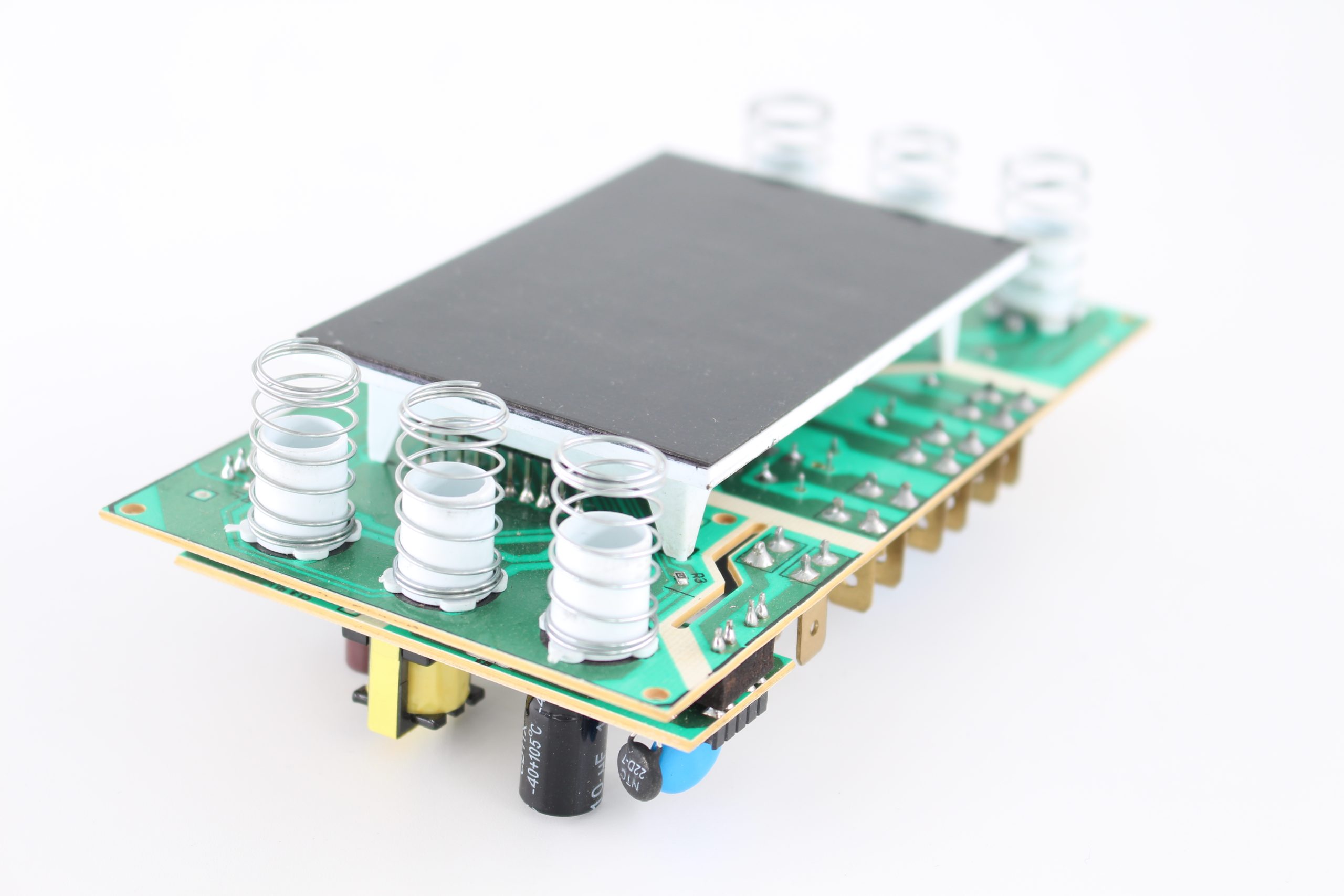

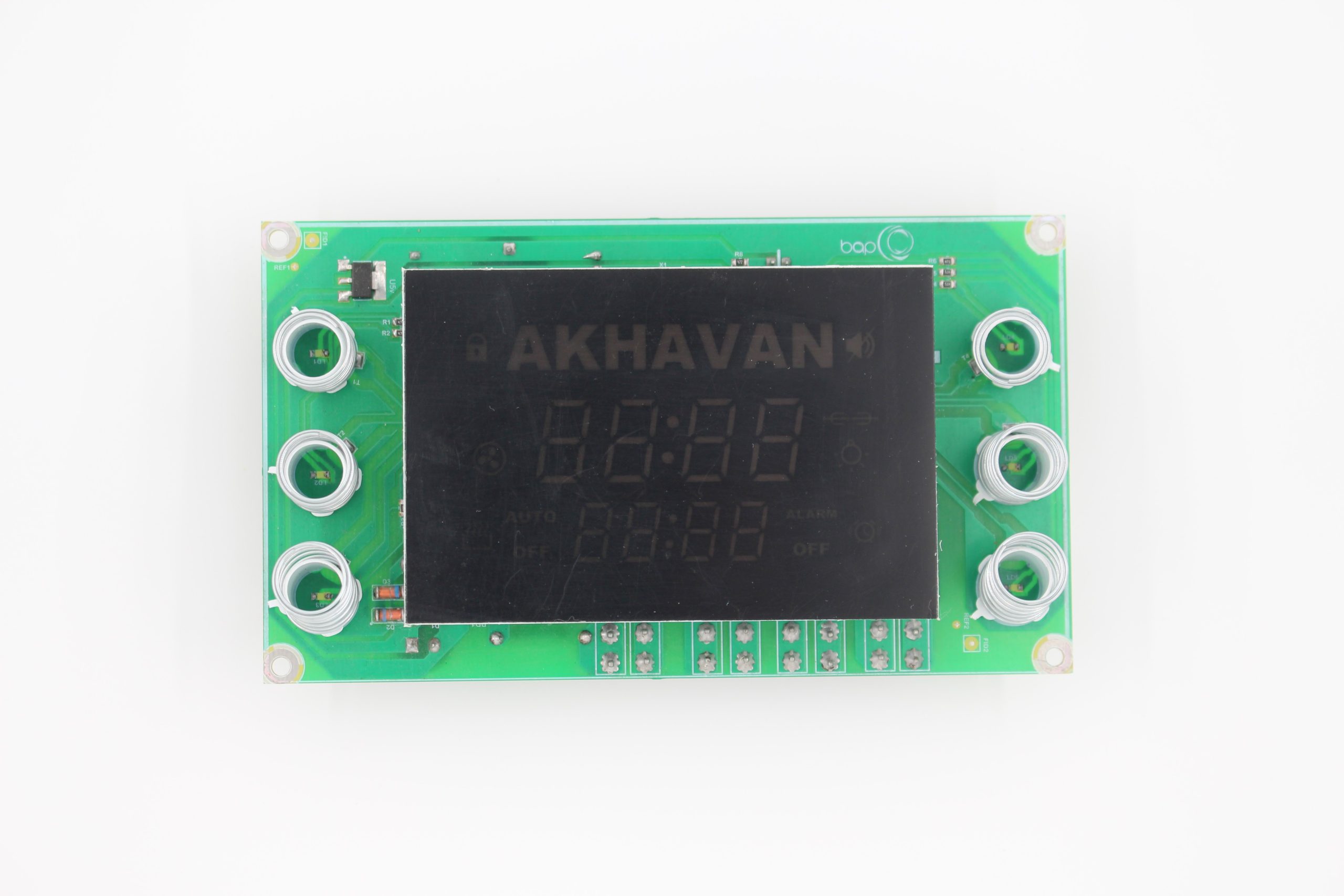

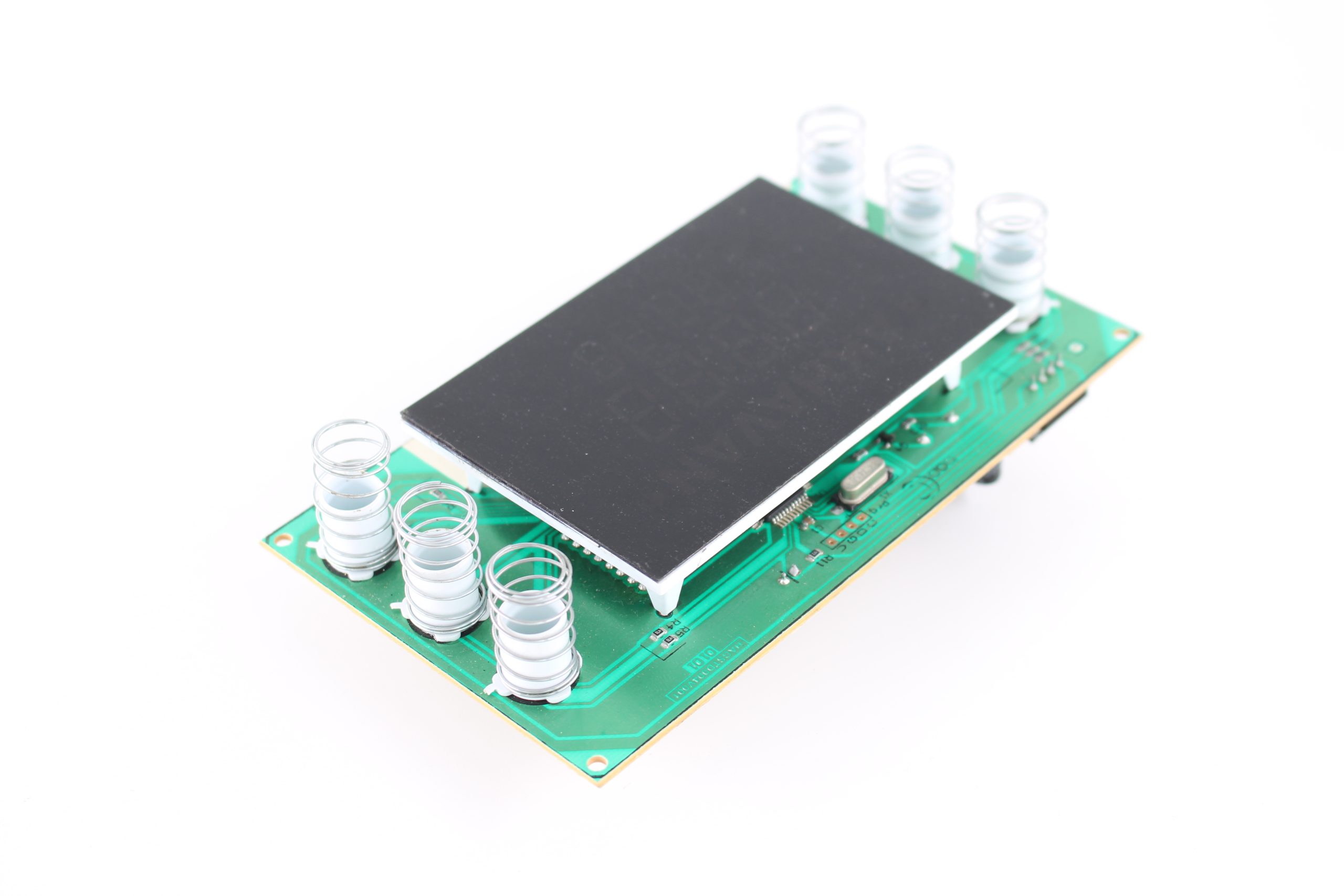

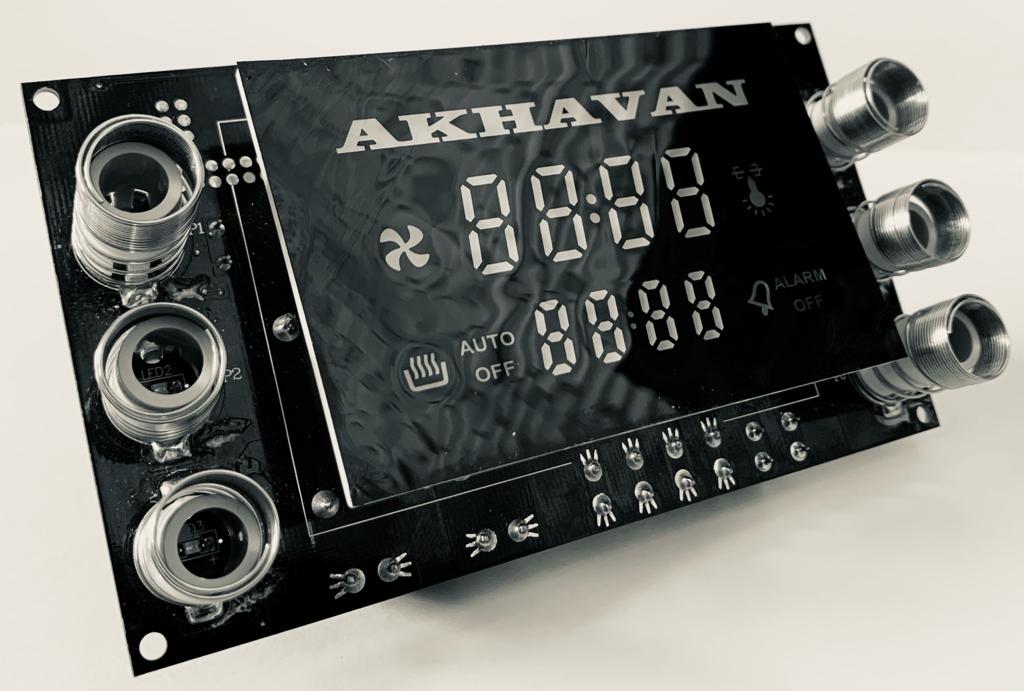

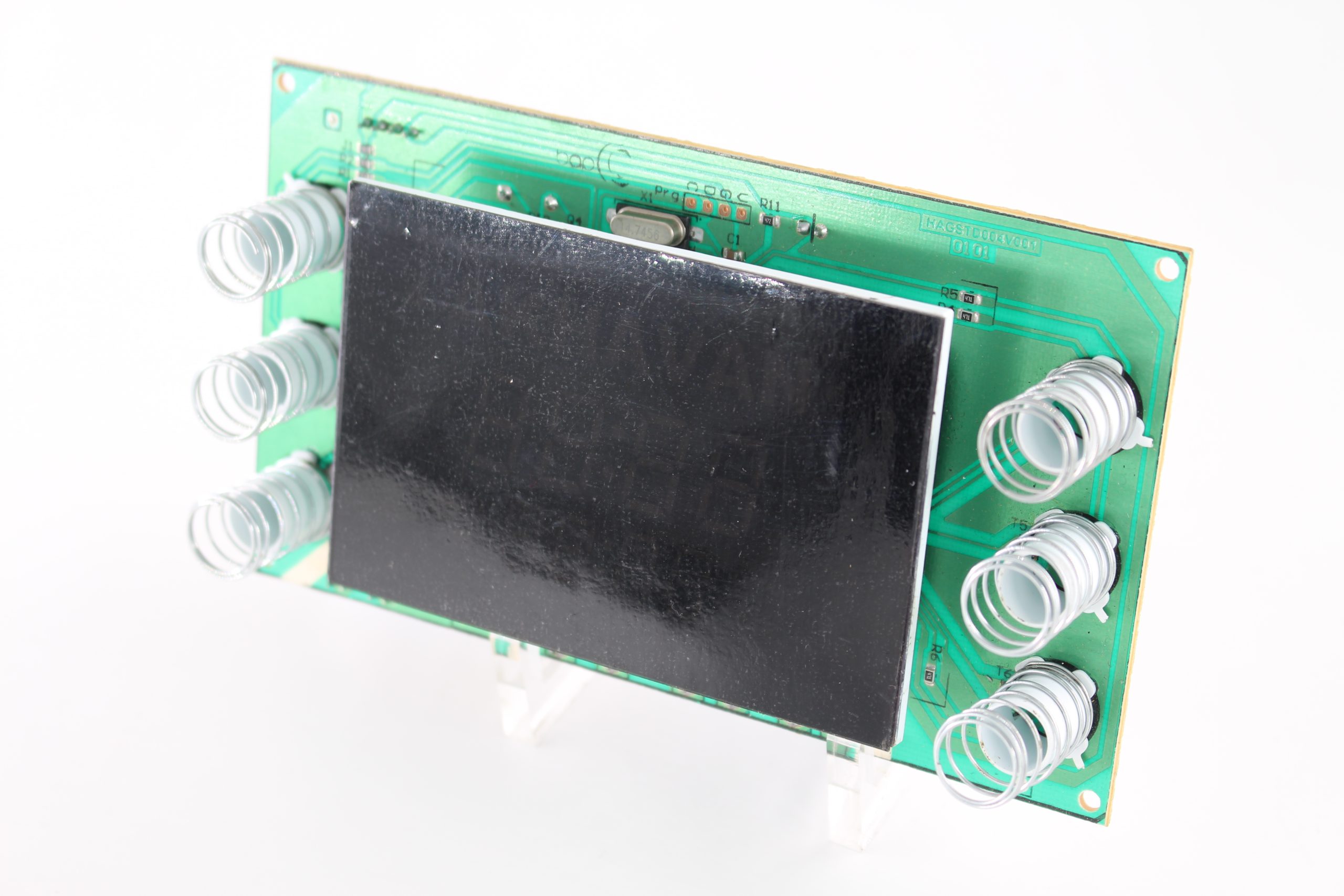

BGT04

stove timer

Category:
Tags: ,

Description

timer uses a switching power supply that can operate at voltages of 100 to 265 volts.

The display of this timer is LED

this timer in addition to time control, can control a flame, child lock, 6 cooking programs.

this timer has a lamp, a fan and a rotisserie.

Also, this timer uses a temperature sensor inside the oven and with its help it can control the top element and the convection of the oven.

Additional information

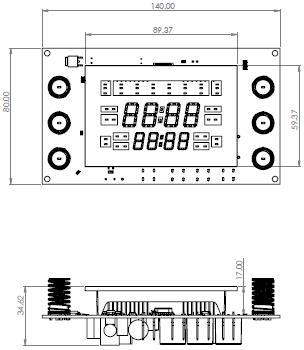

Dimensions 140 × 80 mm
Input Working Voltage

160~265vAC, 50(60)Hz

Display type

LED

Relay Data

2x 16A-250vAC+5x10A-250vAC

Flame Control

1 Flame

Reminder Timer

Yes

Auto-Off Timer

Yes

Child Lock

Yes

Cooking Schedules

6

Convection Fan

Yes

Spit Motor

Yes

Oven Chamber Temperature Sensor

1 NTC

Working Temperature Range

-20~85 ˚C

ISIRI 1562-1 Standard Compliance

Pass
